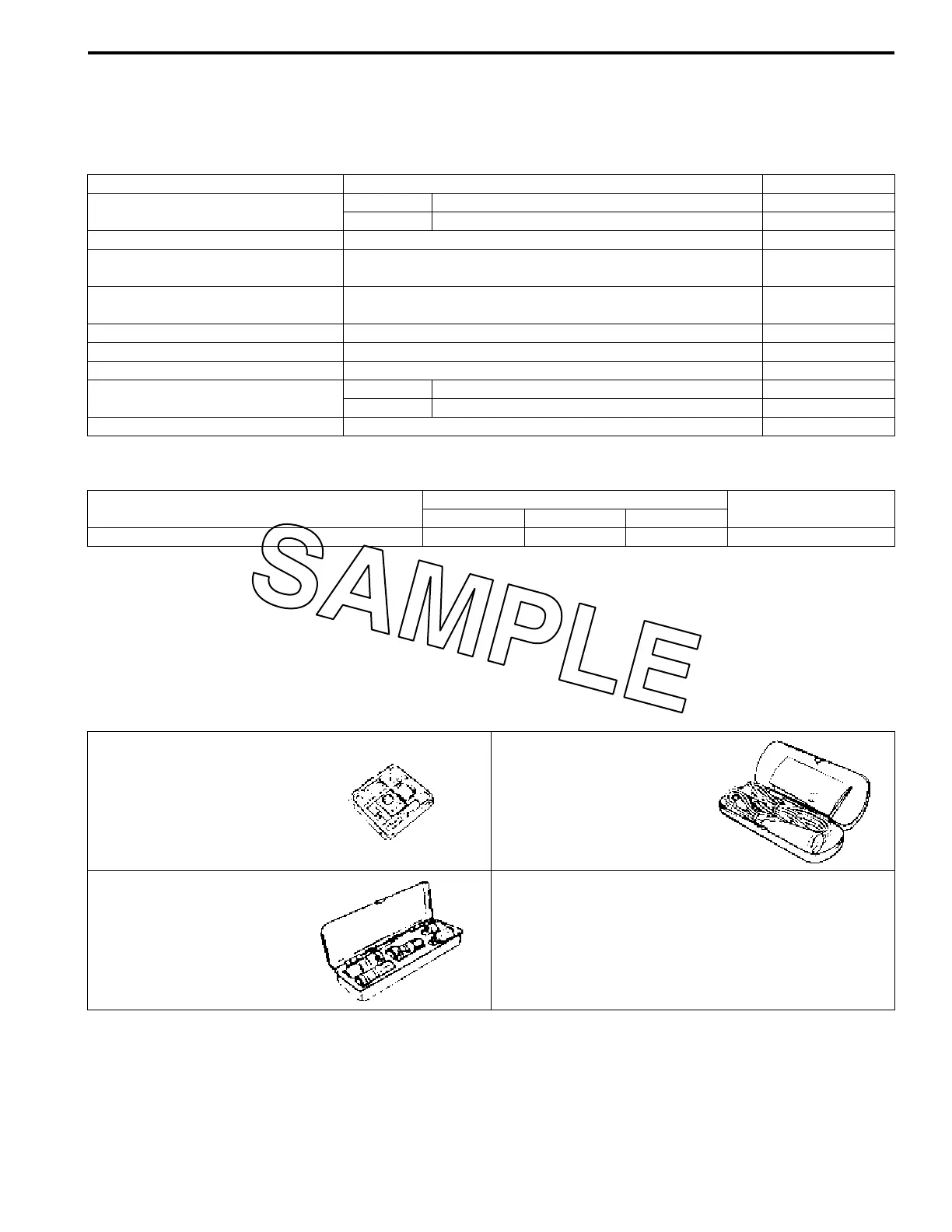

Suzuki RMX450Z - Service Data; Special Tool; Special Tools and Equipment; Specifications

Ignition System: 1H-10
Specifications
Service Data
BA02J21807001
Electrical
Unit: mm (in)
Tightening Torque Specifications
BA02J21807002
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List” in Section 0C
(Page 0C-8).
Special Tools and Equipment
Special Tool
BA02J21808001
Item Specification Note
Spark plug
Type NGK: CR8EIB-10
Gap 0.9 – 1.0 (0.035 – 0.039)
Spark performance Over 8 (0.3) at 1 atm.
Crankshaft rotation signal sensor
peak voltage
3.0 V and more (+): B/R, (–): R/W
Crankshaft rotation signal sensor
resistance
0.2 – 0.6 Ω B/R – R/W
Charge coil resistance 0.2 – 0.6 Ω Y – Y
CKP sensor peak voltage 5.0 V and more (+): R, (–): G
CKP sensor resistance 150 – 280 Ω R – G
Ignition coil resistance
Primary 0.17 – 0.23 Ω W/Bl – B/W
Secondary 5.04 – 7.56 kΩ Plug cap – B/W
Ignition coil primary peak voltage 175 V and more (+): B/W, (–): W/Bl
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Spark plug 11 1.1 8.0 )(Page 1H-4)
09900–25008 09900–25009
Multi circuit tester set Needle-point probe set
)(Page 1H-5) / )(Page 1H-
6) / )(Page 1H-6) /
)(Page 1H-7) / )(Page 1H-
8)
)(Page 1H-5) / )(Page 1H-
8)
09930–10121
Spark plug wrench set
)(Page 1H-4) / )(Page 1H-
4)
