Symbologies 13 - 71

Discrete 2 of 5 (DTF)

Enable/Disable Discrete 2 of 5

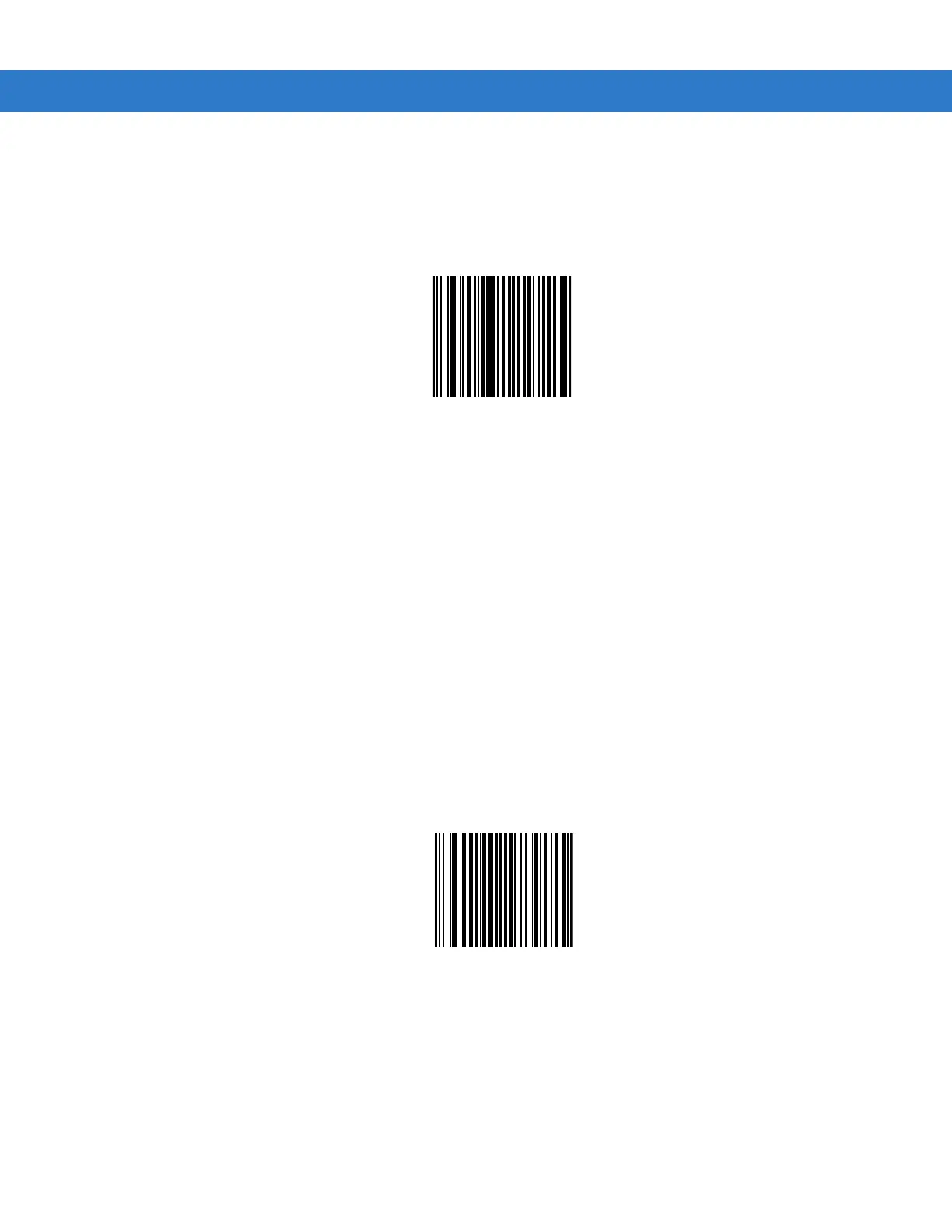

To enable or disable Discrete 2 of 5, scan the appropriate bar code below.

Enable Discrete 2 of 5

*Disable Discrete 2 of 5
