Miscellaneous Scanner Options 14 - 11

Report Synapse Cable

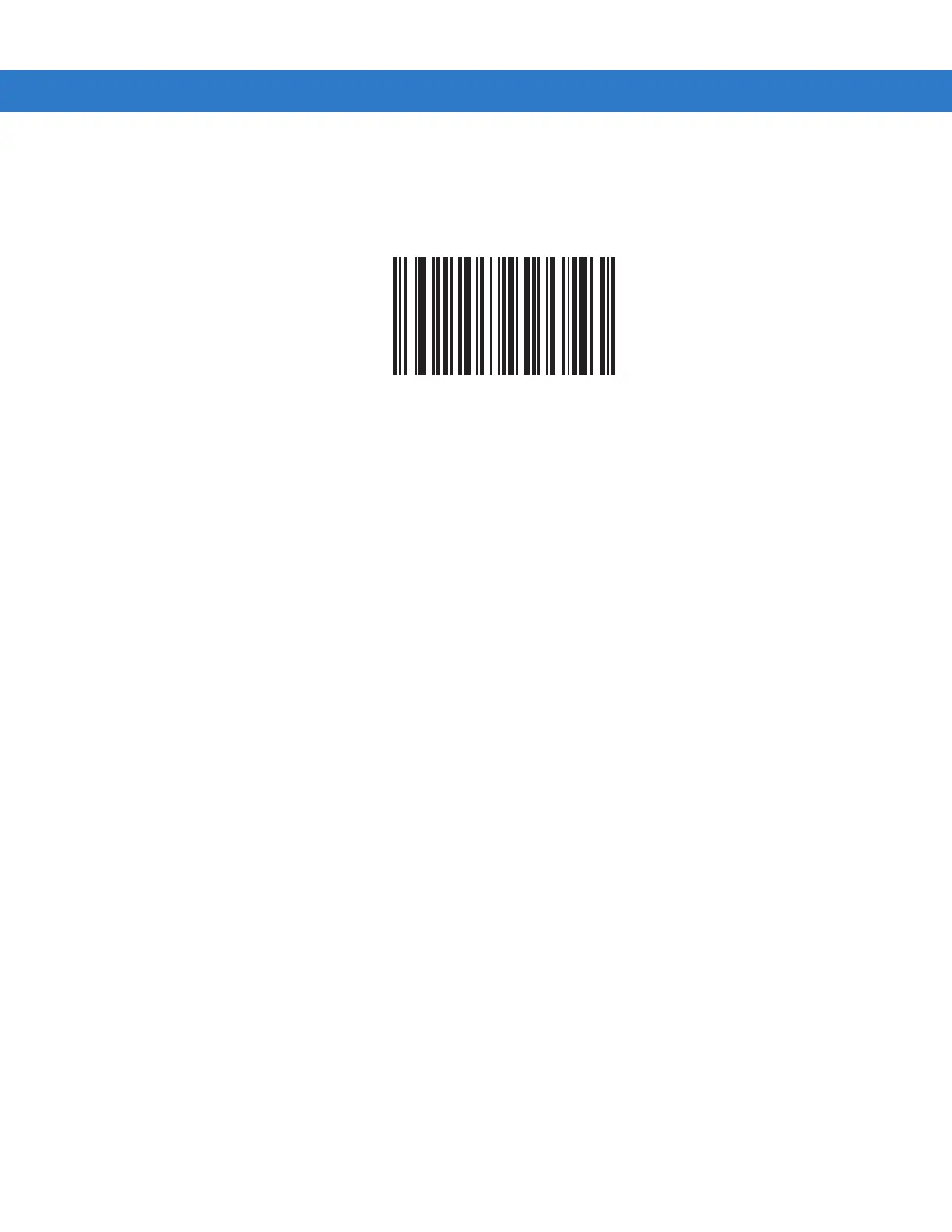

Scan the bar code below to report the software revision of the attached Synapse cable. If the scanner does not detect an attached

Synapse cable, it reports Synapse not attached.

Report Synapse Cable
