Symbologies 13 - 75

Codabar (NW - 7)

Enable/Disable Codabar

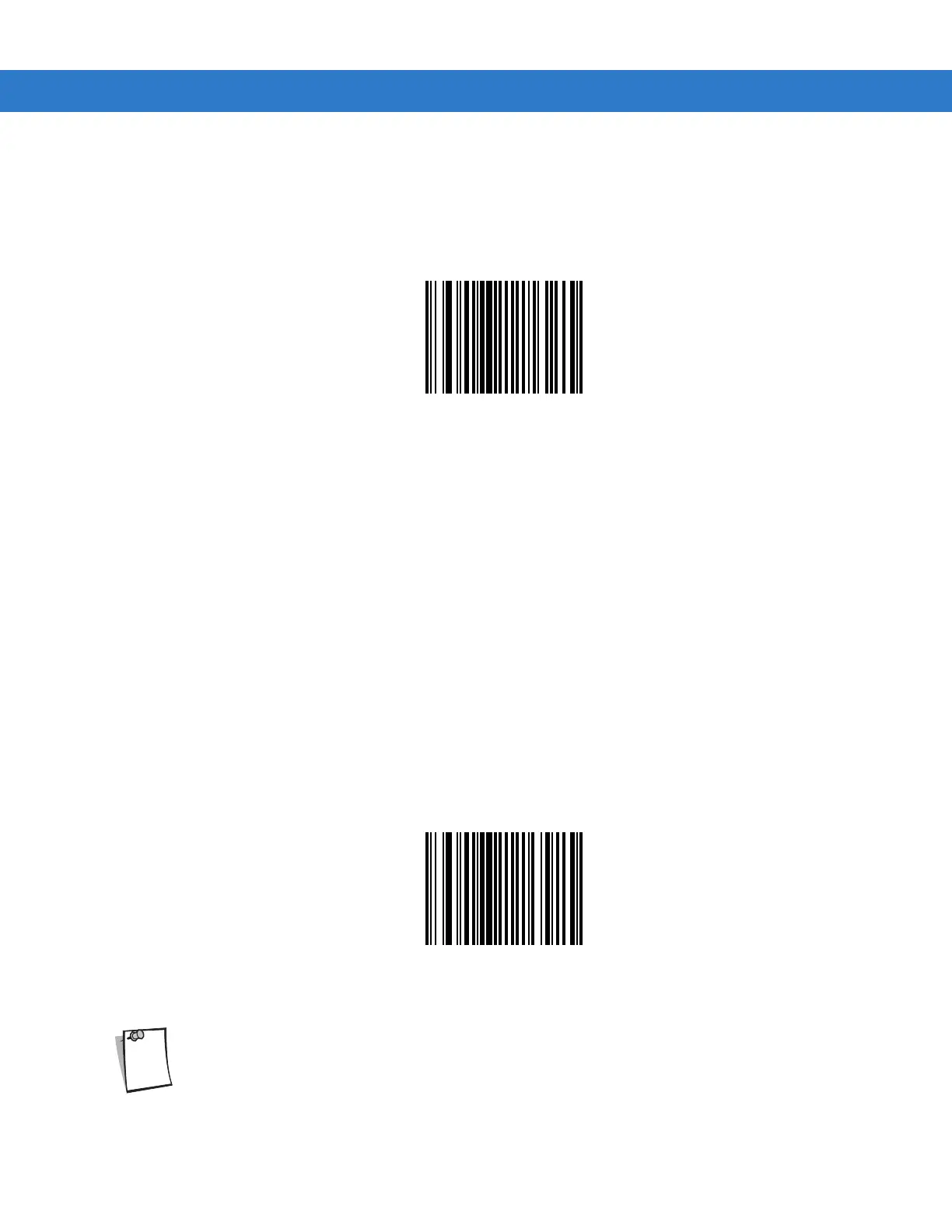

To enable or disable Codabar, scan the appropriate bar code below.

Enable Codabar

*Disable Codabar

When a large gap bar code is encountered, see Symbology - Intercharacter Gap on page 13-93.
