5 - 2 LS7708 Scanner Product Reference Guide
Connecting a Keyboard Wedge Interface
To connect the Keyboard Wedge configuration (see Figure 5-14):

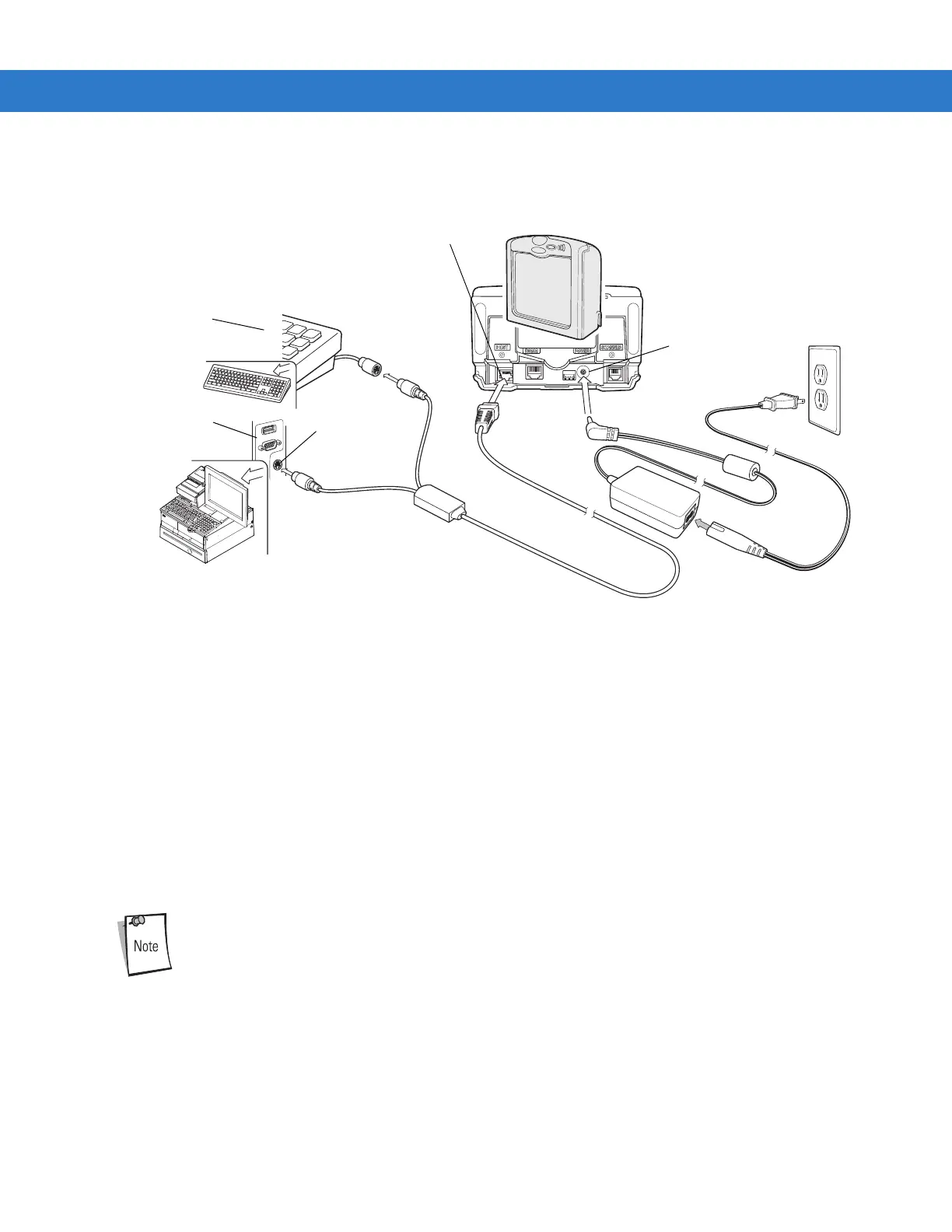

Figure 5-14Keyboard Wedge Connection Without Peripherals - Power Supplied Externally
1. Switch off the host and unplug the keyboard connector.
2. Attach the modular connector of the Y-cable to the host port on the scanner.
3. Connect the round male DIN host connector of the Y-cable to the keyboard port on the host.
4. Connect the round female DIN keyboard connector of the Y-cable to the keyboard connector.
5. Connect the peripherals, if any, to their respective ports (see Figure 5-15).
6. Connect the power supply to the scanner’s power port.
7. Ensure that all connections are secure.
8. Turn on the host system.
9. Scan the appropriate bar codes in this chapter or use 123Scan to configure the scanner.
Interface cables vary depending on configuration. The connectors may be different from the examples
illustrated, but the steps to connect the scanner are the same. See Chapter 1, Getting Started for
connection information.
Host Port
Power Port
Keyboard
Host
Keyboard Port
To Next Page
