3 Overview
CyFlow™ Cube 6 V2m | Operating Manual | February 2020
17

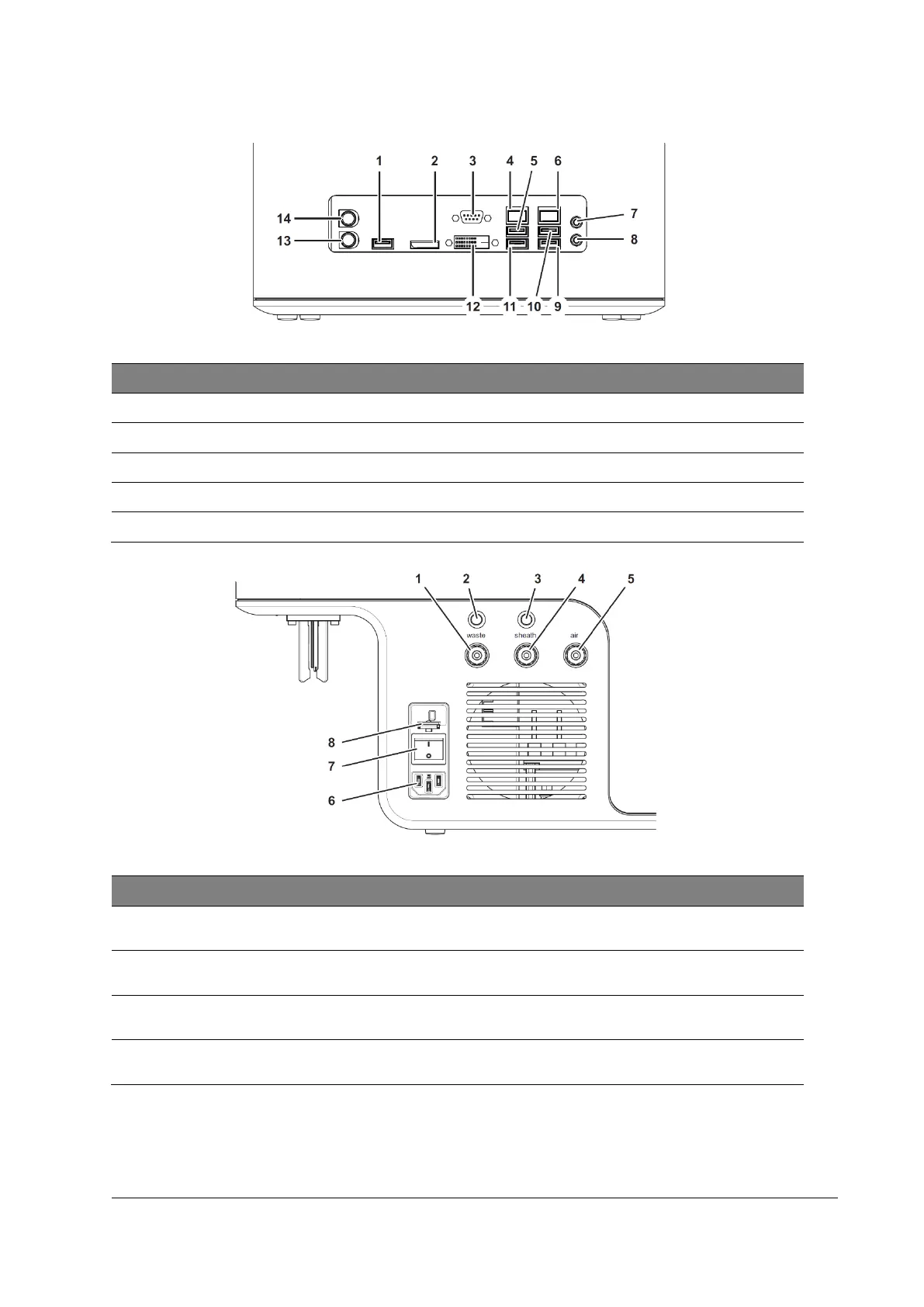

Figure 2: Ports for external devices
#
Item
#
Item
#
Item
1
USB port
2
HDMI port
3
Serial port
4
Ethernet port
5
USB port
6
Ethernet port
7
Audio port
8
Audio port
9
USB port
10
USB port
11
USB port
12
DVI port
13
Keyboard port
14
Mouse port
Figure 3: Rear side of the device
#
Item
#
Item
1
Tubing connection Waste bottle
5
Vacuum tubing connection Waste
bottle
2
Sensor cable connection Waste
bottle
6
Connector socket power cord
3
Sensor cable connection Sheath
Fluid bottle
7
Power switch
4
Tubing connection Sheath Fluid
bottle
8
Fuse insert (T 3.15 A 250 V)
