11.5.2 Plots
The Plots register shows and defines the individual plot properties.
Number, type (histograms, dot plots) and position of the plots are defined in the
configuration file.
Choose different Configuration files for different layouts.
INFORMATION
Modification of Plots
Individual plots can be selected using the arrow keys.
[Alt] + Right-click within a plot shows the plot properties.
Confirm all modifications by pressing [Accept].

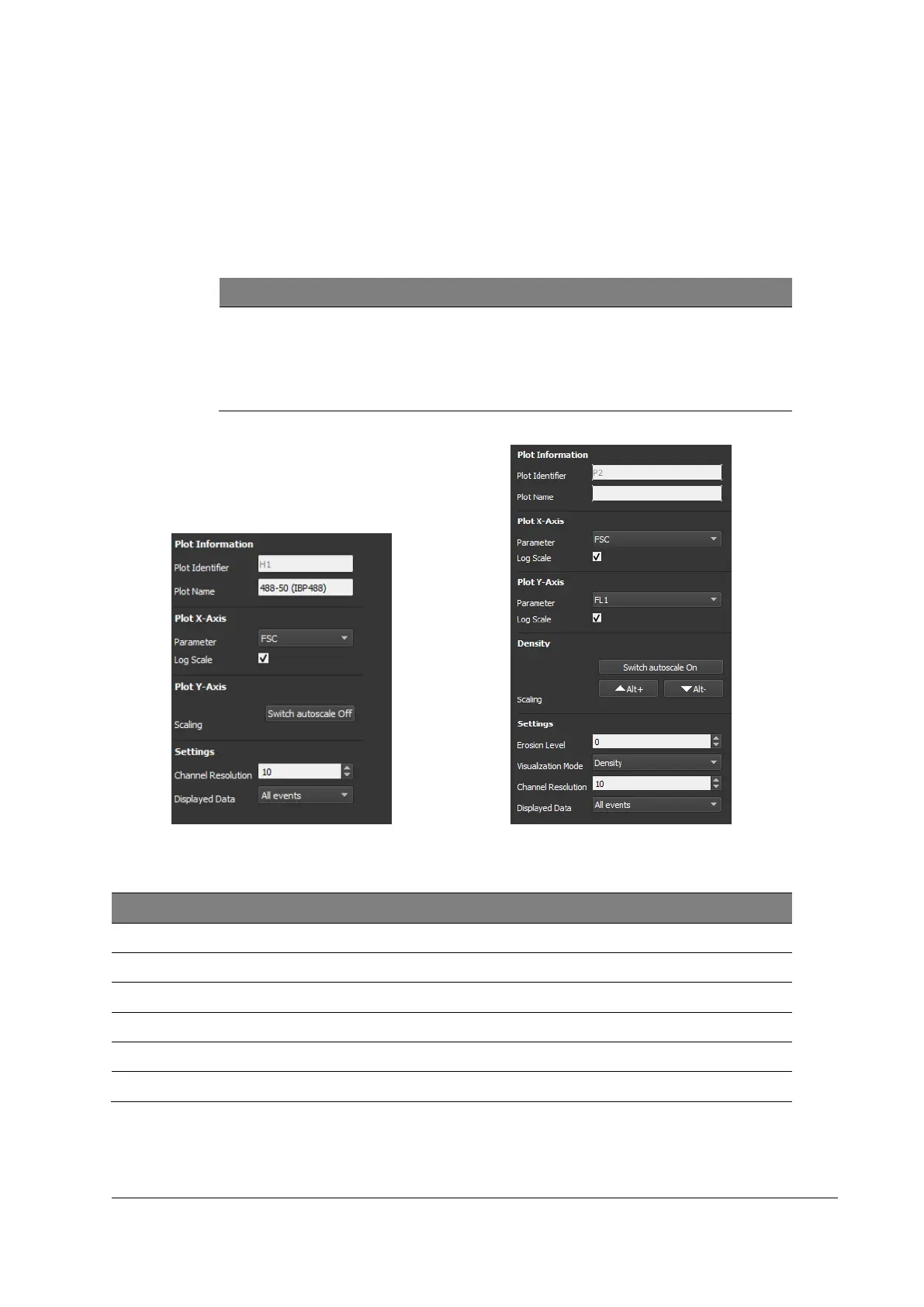

Figure 20: Plots register (Histogram)
Figure 21: Plots register (Dot plot)
Property
Description
Plot Information
Plot Identifier
Plot ID above dot plot / histogram
Plot Name
Defines the dot plot / histogram name (may be changed manually)
Plot X-Axis
Parameter
Parameter to be displayed on the x-axis
Log Scale
Changes the x-axis scaling from linear to logarithmic scale
