Chapter 7 Usage of Various Functions
7-50

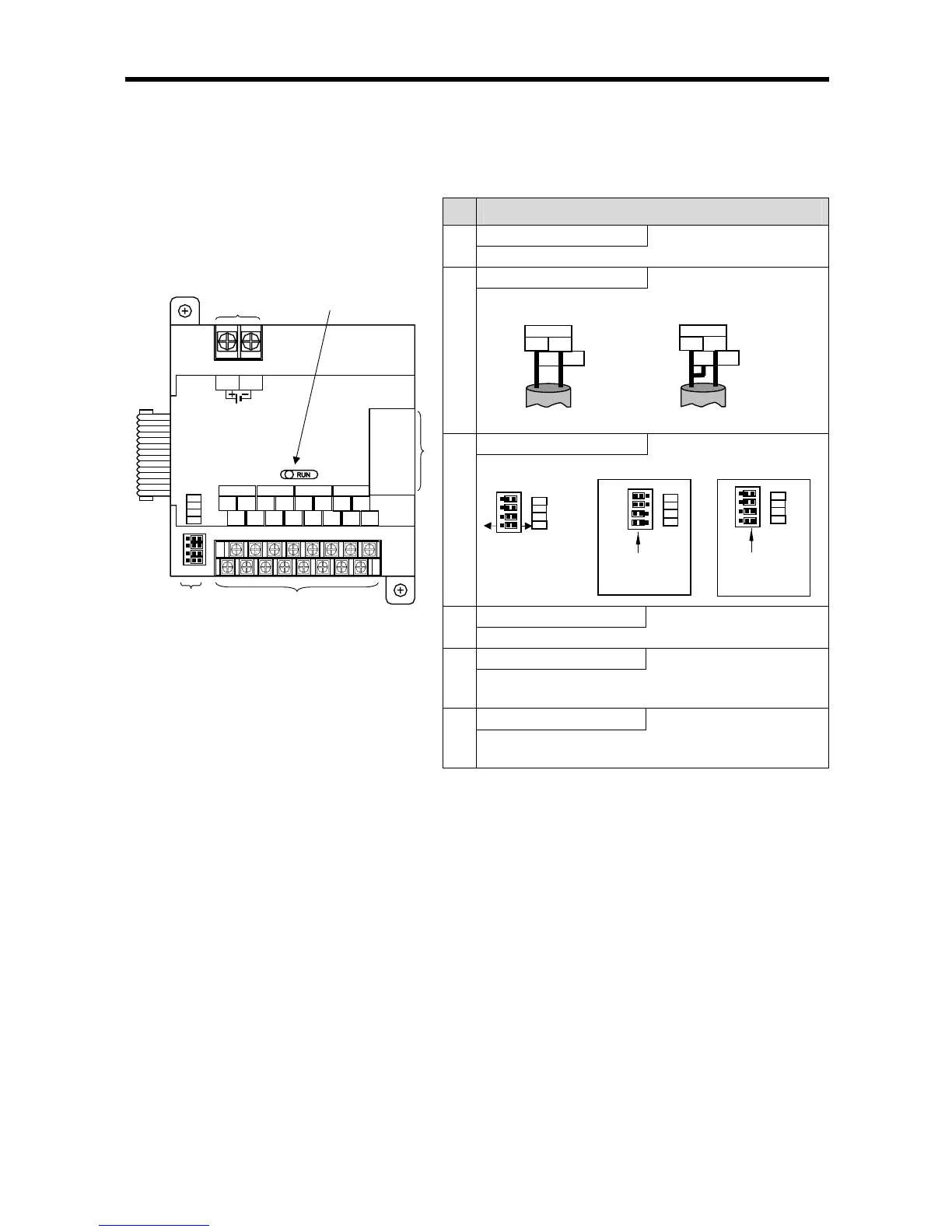

2) Names of parts and functions
The Names of parts and functions of the analog input module are following.
No Contents
RUN LED
Indicate the operating status the G7F-AD2A
Analog input terminal
Voltage input
Current input
When current input is used, short the V and I terminal.
Jumper pin of analog input
Voltage input
Connect left parts
by jumper pins
Current input
Connect right parts
by jumper pins
External power input terminal
External voltage 24VDC needs to this terminal.
Extension cable
This cable is used to connect while analog input module is
used.
.
Extension cable connector
The connector connects extension cable when extended
module is used.
