Chapter 7 Usage of Various Functions
7-51

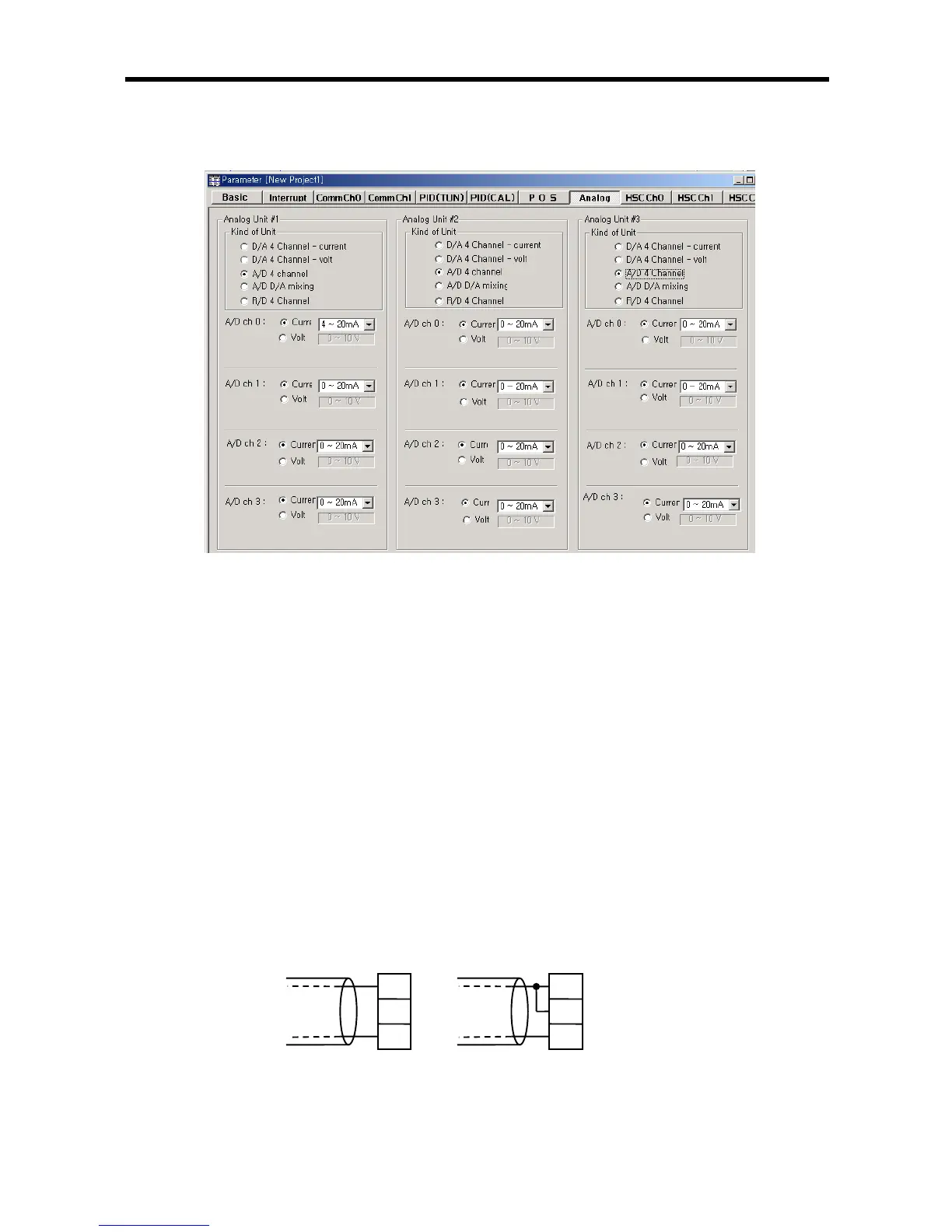

3) Parameter setting
(1) Scaling function
The scaling function is the same that of A/D, D/A combination module.
4) Wiring
(1) Caution for wiring
•Make sure that external input signal of the mixture module of AC and analog I/O is not affected by induction noise or
occurs from the AC through using another cable.
•Wire is adopted with consideration about peripheral temperature and electric current allowance. Thicker than Max. size
of wire AWG22 (0.3 ) is better.
•If wire is put near to high temp. radiated device or contacted with oil for a long time, it may cause of electric leakage so
that it gets broken or miss-operation during wiring.
•Be sure to connect with care of polarity while connecting to external 24V DC power supply.
•In case of wiring with high voltage line or generation line, it makes induction failure so then it may cause of miss-
operation and out of order.
(2) Wiring
*1 : Be sure to use two-core twisted shield wire.
