7.6.5 Data Repeater Functional Testing
In order to verify the correct operation as a data repeater a basic functional
test can be carried out. This involves sending data from one TM8000 mobile
radio to another TM8000 through the TB7100 base station.
The following equipment will be required:
■ DC power supply
■ antenna for receiver input
■ dummy load for transmitter output
■ two TM8000 mobile radios capable of sending and receiving the
required data format.
■ two PCs running the terminal application.
■ programming cables for the TM8000 mobile radios.
The test set-up is shown in Figure 7.10 on page 104.
The correct operation of the base station as an RF modem can be verified
by transferring text files between the two PCs.
7.7 TaitNet Trunking
The TB7100 base station can be configured to work with a T1810 or T1711
to form part of a TaitNet MPT1327 Trunking System.
For more information, refer to the technical note TN-1033-AN “Using the
Tait TB7100 in TaitNet MPT1327 Trunked Networks” available from
http://support.taitworld.com.

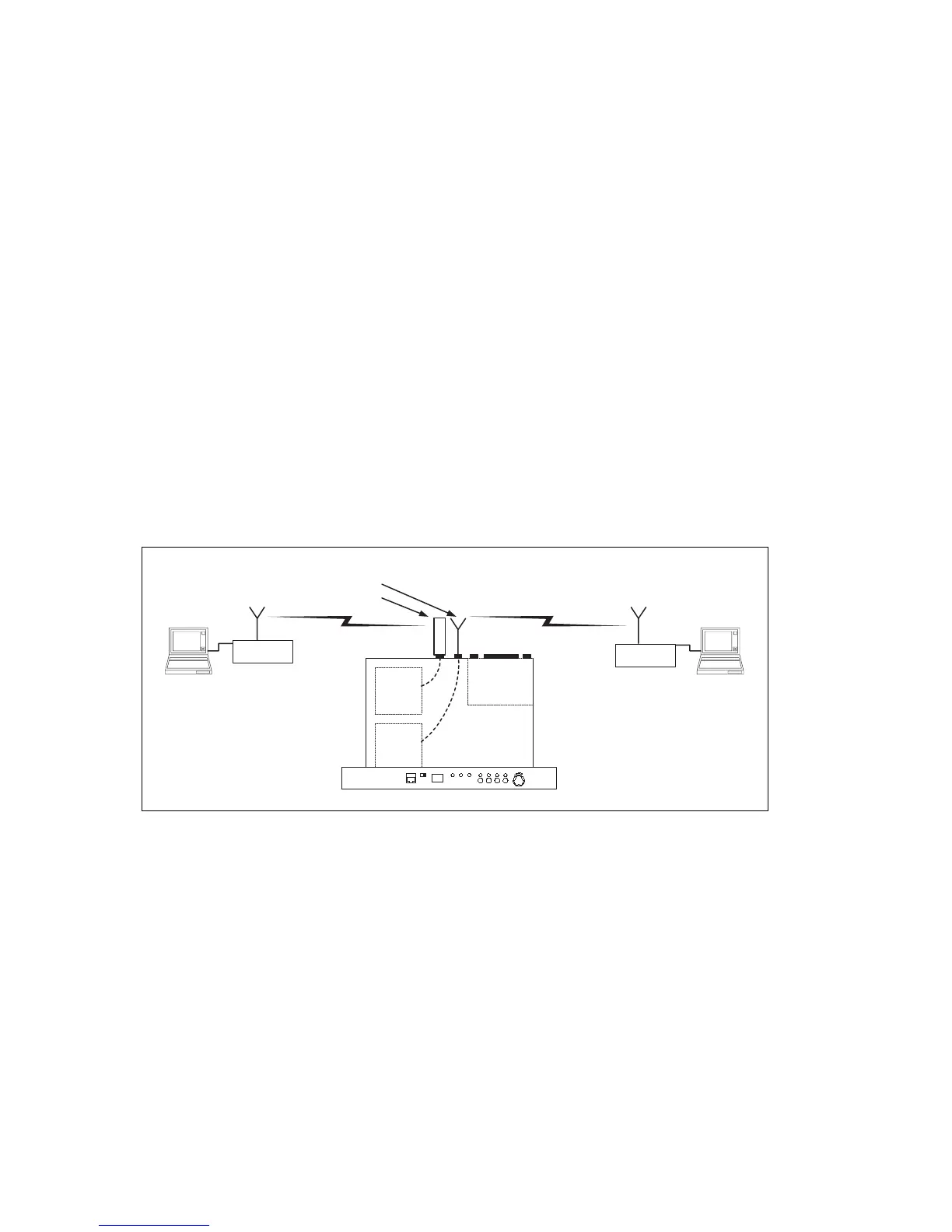

Figure 7.10 Data repeater test setup
Receiver
Transmitter
System Interface
Dummy Load
Antenna
TM8000 Mobile
Radio
PROG/MIC Tx/Rx CHANNEL POWER Tx BUSY F1 F3 F4F2 VOLUME
TM8000 Mobile
Radio
Terminal
Application
Terminal
Application
