7.9 Additional Settings
The additional link settings control the following functions:
■ subaudible signalling
■ CTCSS (continuous tone controlled squelch system)
■ DCS (digital coded squelch)
■ soft off (tx tail time)
■ tone on idle
■ fan operation
■ channel ID
■ relay polarity
■ channel increment and decrement by function buttons
■ CWID (carrier wave identification).
7.10 Adding Subaudible Signalling
The base station is able to decode one CTCSS or DCS tone per channel. It
can also generate one CTCSS or DCS tone per channel. The generated tone
can be the same as the received tone or can be a different tone.
7.10.1 Enabling Subaudible Signalling
Transmitter Module 1. Read the data file out of the transmitter module.

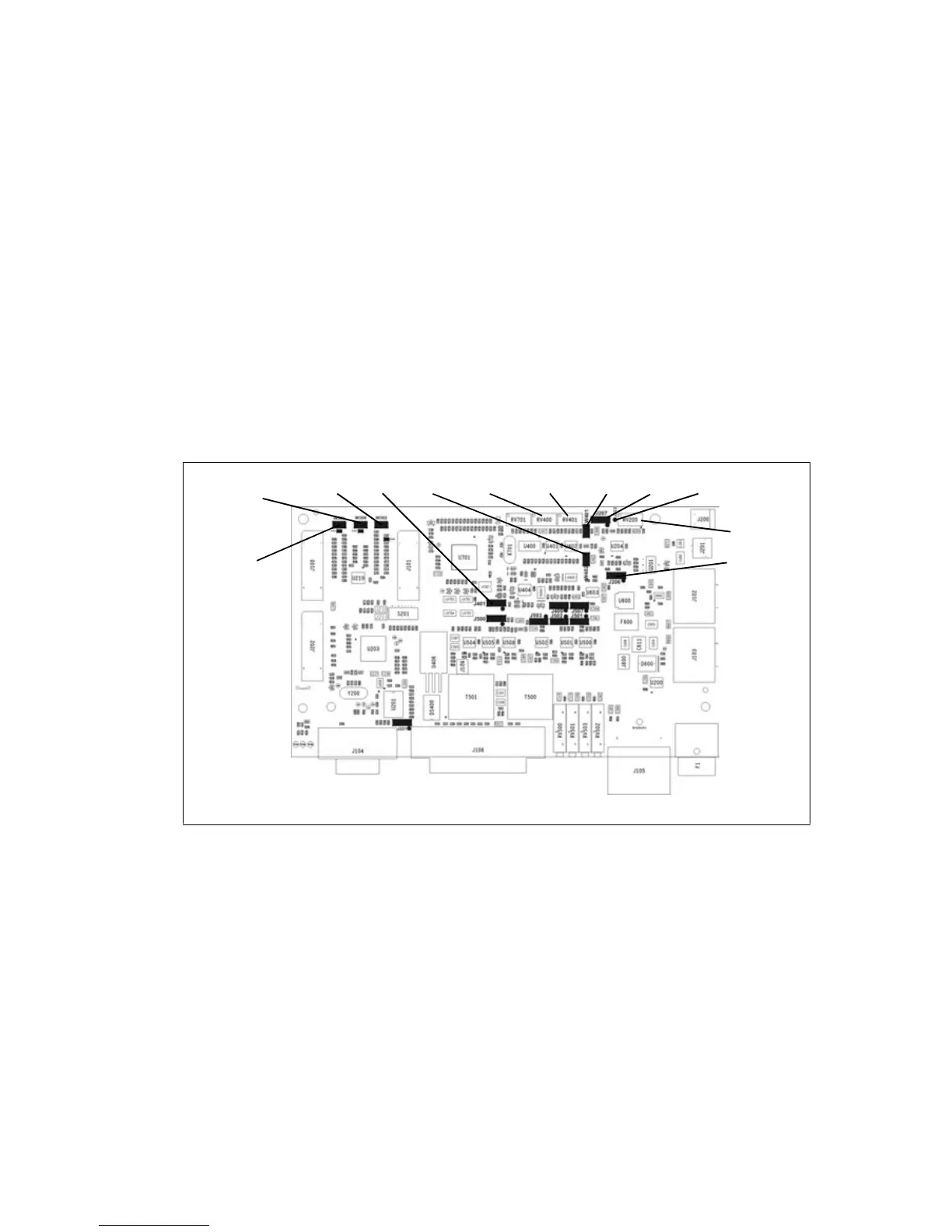

Figure 7.11 System interface link positions
J206
RV200
J207W401RV401W402J401W302
W300
W301
RV400 J222
To Next Page
