TB7100 Installation and Operation Manual Introduction 11
© Tait Electronics Limited December 2005
1Introduction
The TB7100 is a software and hardware link-configured base station which
is designed for operation in a large variety of standard frequency ranges.
It makes extensive use of digital and DSP technology. Many operating
parameters such as channel spacing, audio bandwidth and signalling are
controlled by software.
This manual includes the information required for installing and operating
the base station.
This section describes the different options available for:
■ frequency bands
■ RF output power
■ power supply
■ mechanical configurations
■ product codes
For specifications, refer to the specifications manual or the area on the
TaitWorld website reserved for TB7100 products.

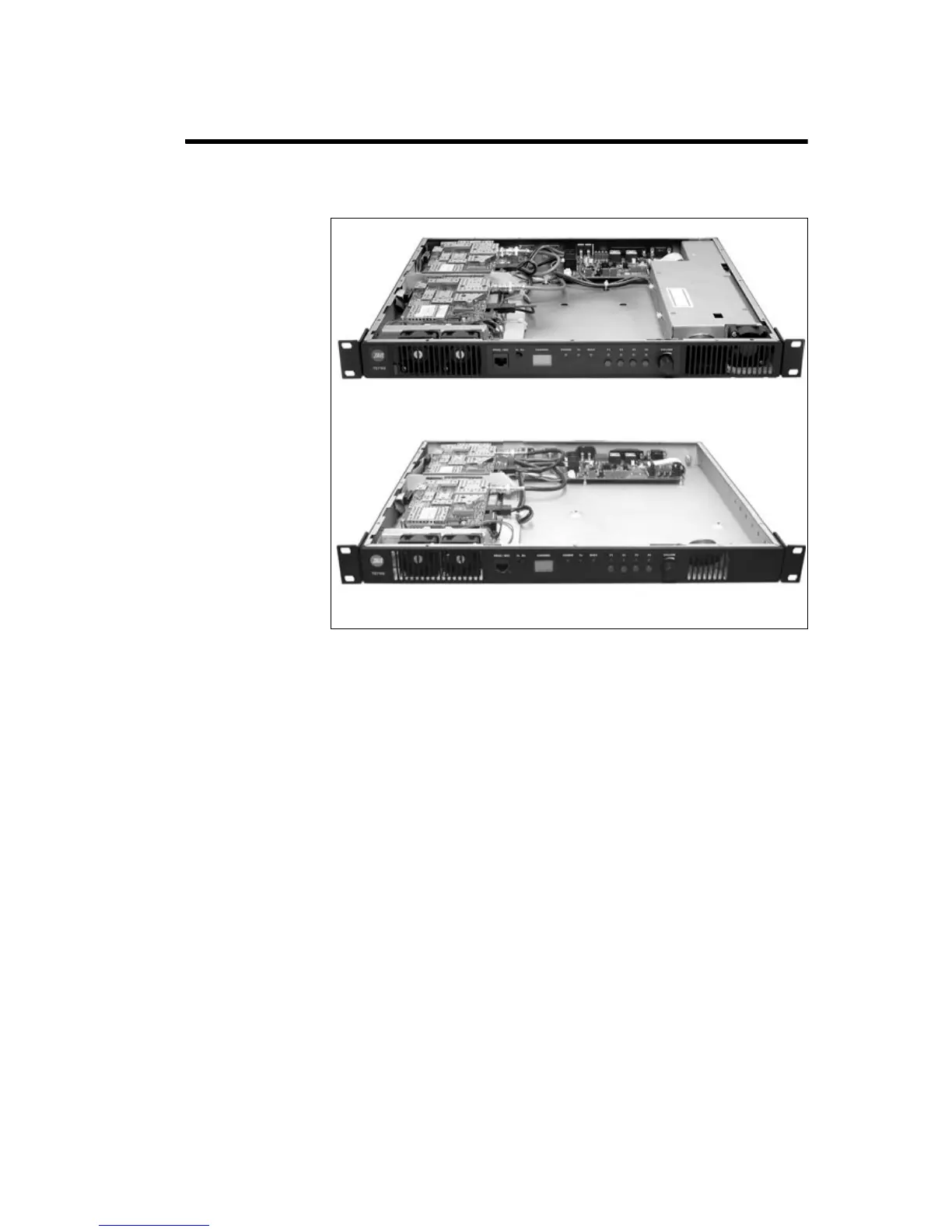

Figure 1.1 TB7100 base stations
Configuration with provision for internal AC power supply*
Configuration without provision for internal AC power supply*
*cover removed
