TM9100 Service Manual Transmitter Fault Finding (50W/40W Radios) 265
© Tait Electronics Limited August 2005

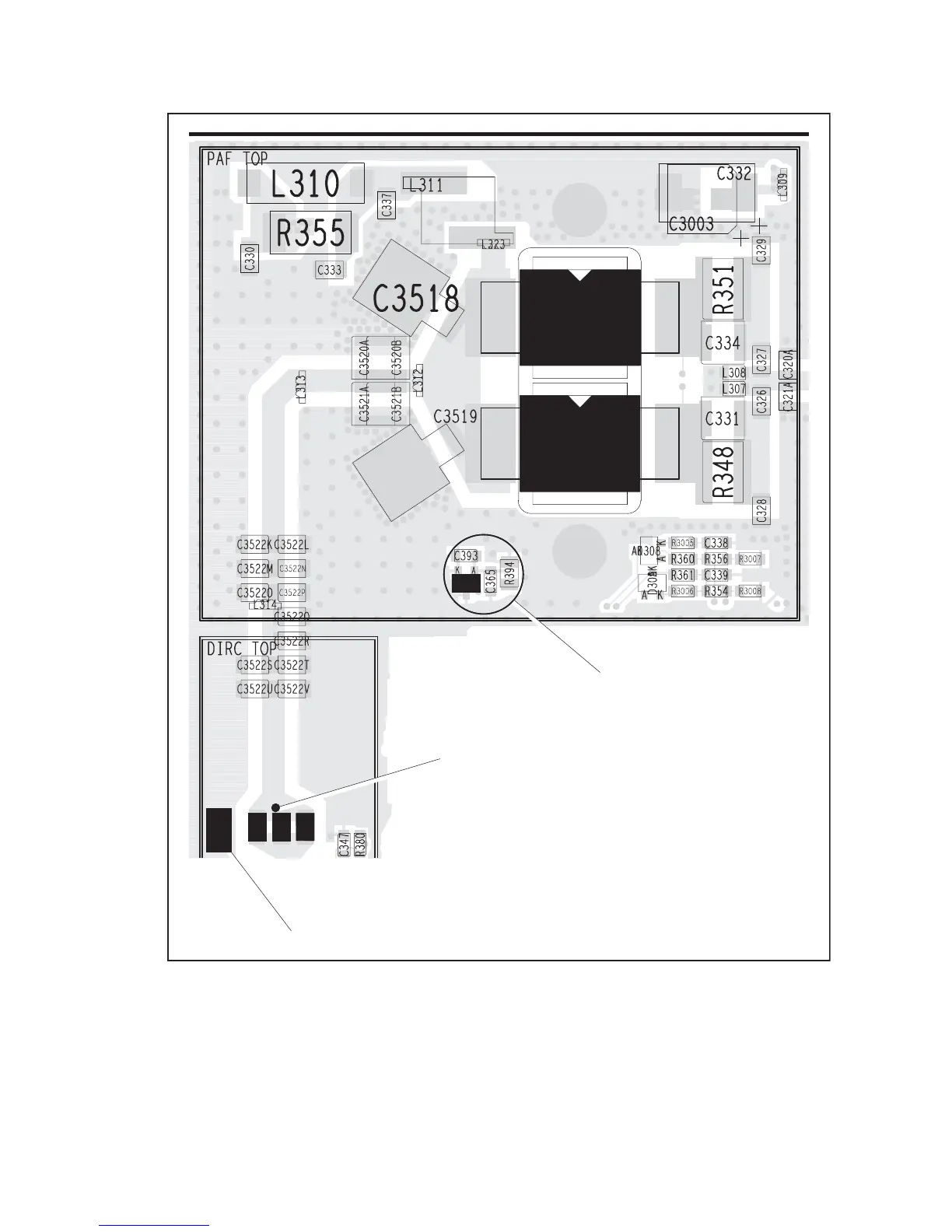

Figure 11.9 PA circuitry under the
PAF TOP can and part of the directional coupler under the DIRC TOP
can (H5 and H7 bands)
H5, H7 BANDS
C348
C349
C350
D301
Q310
Q309
TEST PAD
MOUNTING POINT FOR
TEST CAPACITOR
TEMPERATURE SENSOR
