4-150
4
TRAVEL MOTOR
DISASSEMBLY AND ASSEMBLY

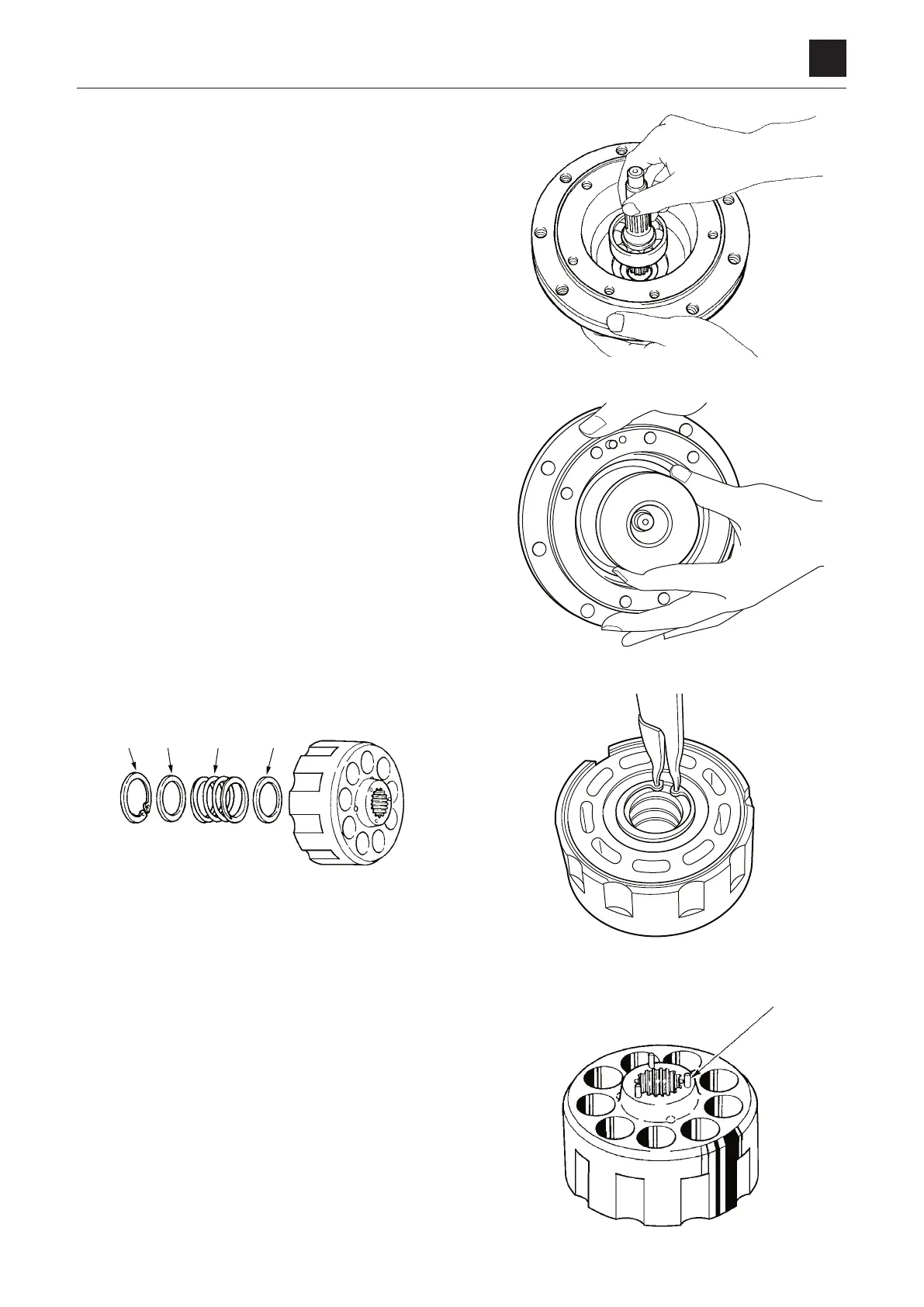

13. Install the shaft on the flange holder.
• The bearing is press-fitted and thus it cannot be dis-
assembled.
• Be careful not to damage the oil seal with the shaft.
14. Install the balls and the swash plate on the flange hold-
er
.
• Apply hydraulic oil to the sliding surfaces of the
swash plate.
15.
Install the retainer (6), spring (8) and retainer (7) on the
cylinder block and secure them with the snap ring (9).
16. Install the three pins (10) on the cylinder block.
To Next Page
