SLEW MOTOR
DISASSEMBLY AND ASSEMBLY

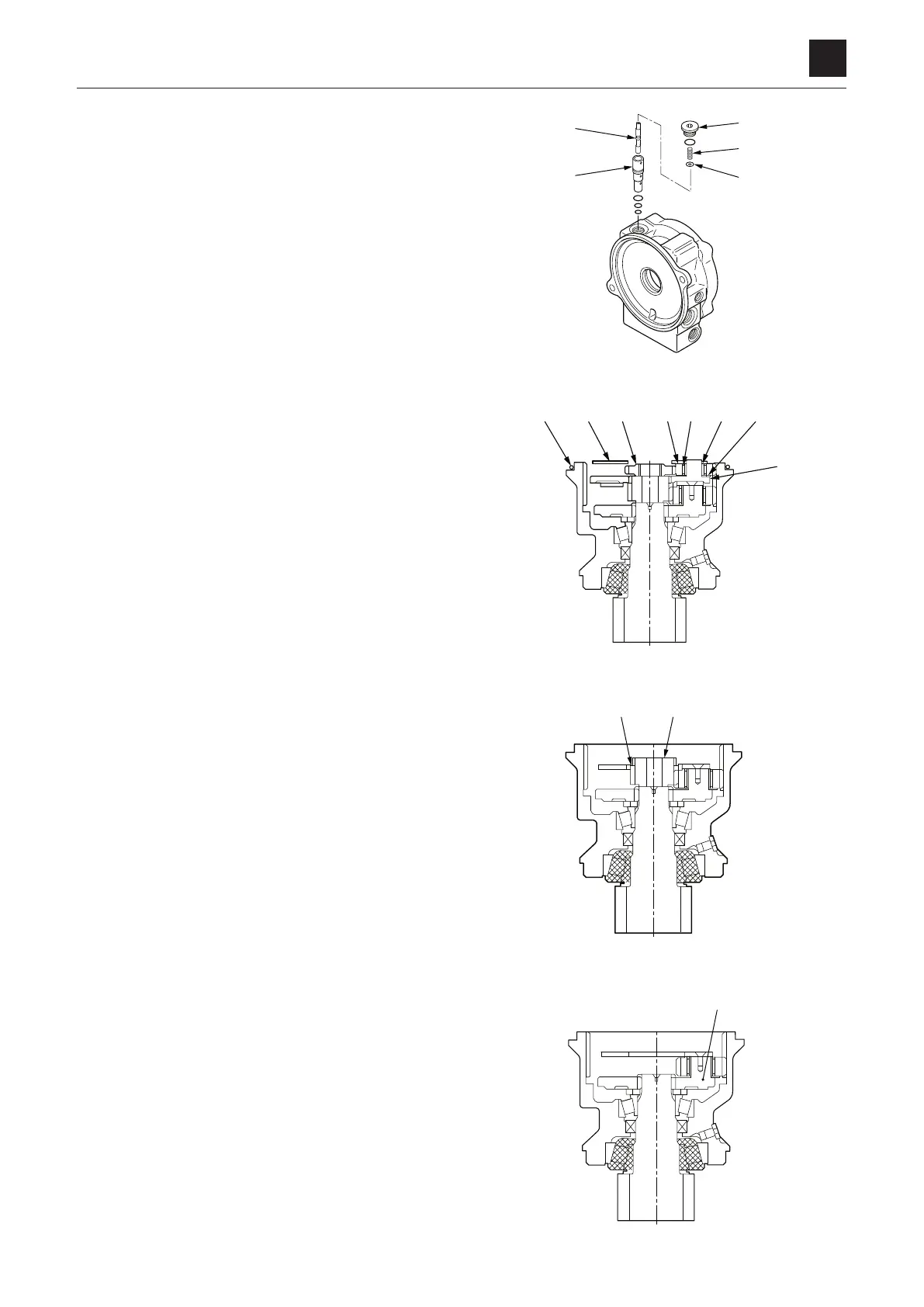

14 Disassemble the timing valve.
a. Remove the plug (30).
b. Remove the spring (31), washer (32) and the spool
(33).
c.
Remove the sleeve (34).
Reduction gears
1. Remove the O-ring (1) and the thrust plate (2).
2. Remove the drive gear (3).
3. Remove the planetary gear (4), needle (5), inner race (6)
and thrust washer (7) from carrier 1 (8).
4. Remove the carrier 1 (8).
5. Remove the sun gear (12) and the snap ring (19).
6. Remove the carrier 2 (13).
