2-63
Fig. 2.167
Fig. 2.169
Fig. 2.168

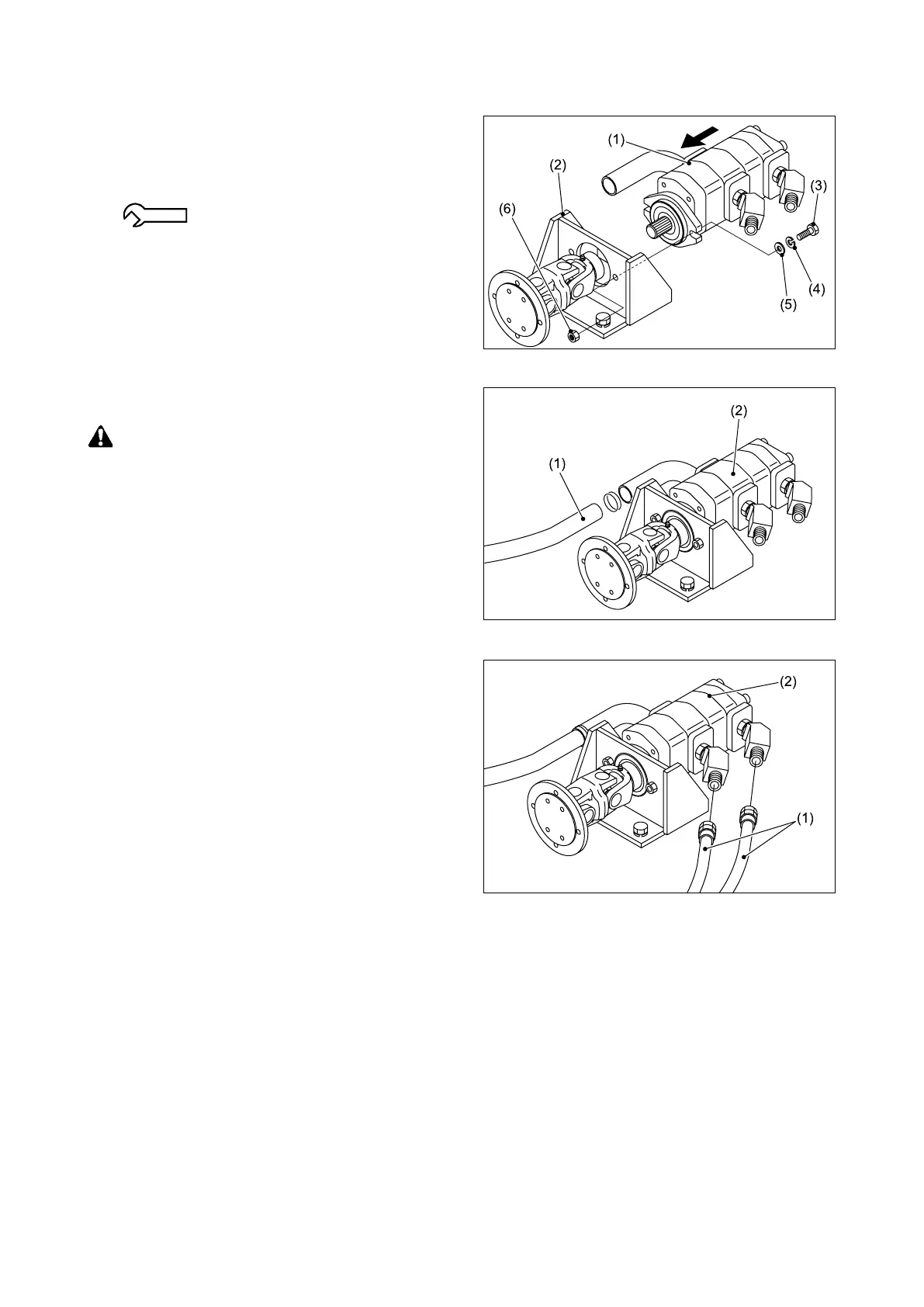

■ REINSTALLATION
① Install the main pump (1) on the mounting
bracket (2) section and then secure it using the
bolts (3), spring washers (4), washers (5) and
nuts (6).
33.8 – 50.9 N-m {3.5 – 5.2 kgf-m}
[24.9 – 37.5 lbf-ft]
② Connect one end of the hose (1) leading from
the oil tank, to the main pump (2).
Caution must be used when connecting the
hose. Oil may leak from the hose.
③ Connect the hoses (1) to the main pump (2),
one leading from the control valve and the
other from the priority valve.
④ I n s tall the counterwei g h t . ( S e e “ 2 . 4
COUNTERWEIGHT.”)
⑤ Filltheoiltankwiththespeciedamountof
oil.
To Next Page
