3-145
Fig. 3.461
Fig. 3.462
Fig. 3.463
Fig. 3.464
3.11 MAST
3.11.1 VM MAST
■DISASSEMBLY

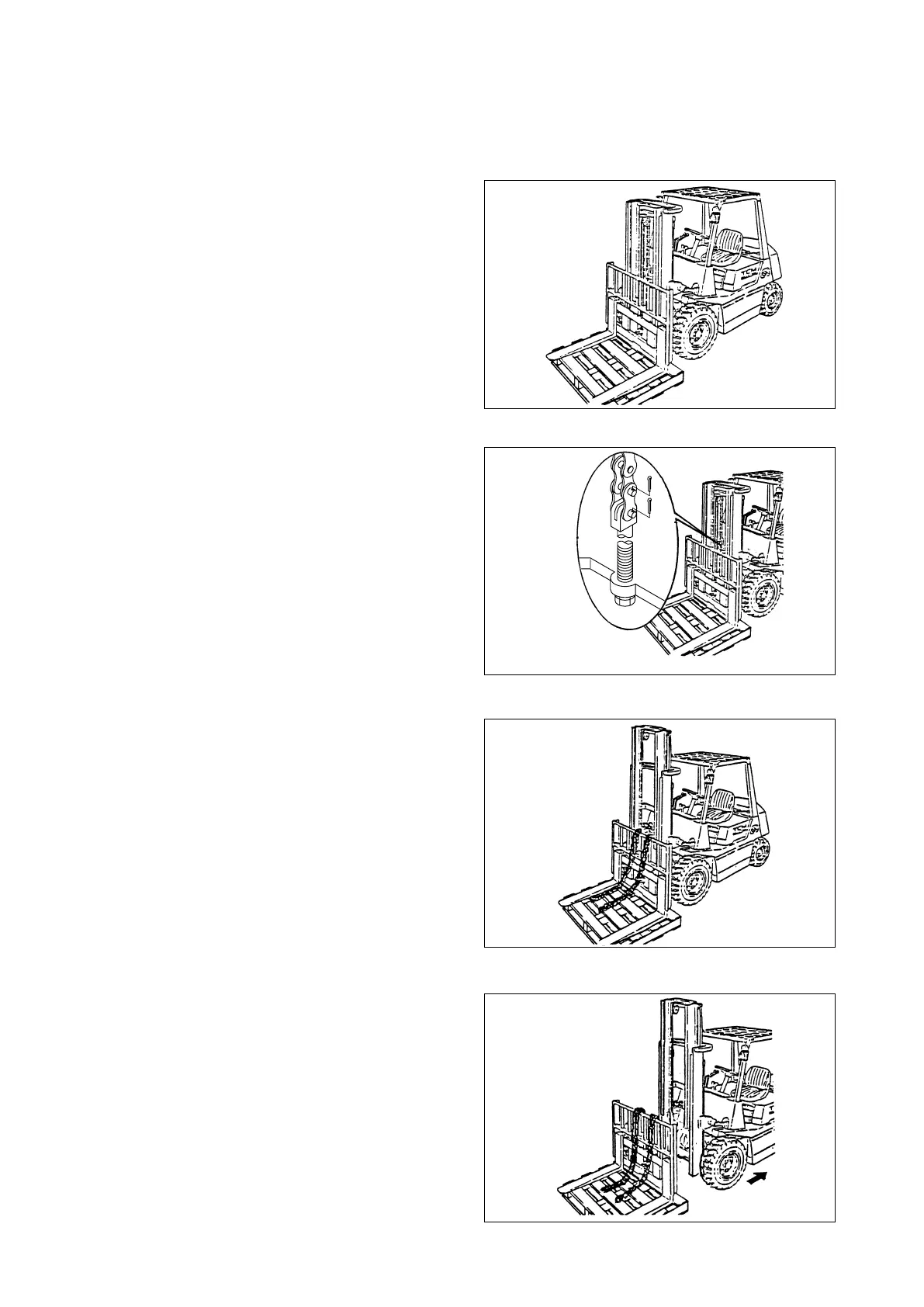

(1) Remove the carriage and forks along with the
load backrest as a complete assembly.
① Lower the carriage and fork assembly on the
pallet and loosen the chains.
② Remove the split pins from the joint linkage
and remove the chains from the outer mast.
③ Put the chains on the pallet and raise the inner
mast hydraulically above the carriage end
rollers.
④ Drive back the truck to ensure that you can
gain access to all the carriage end rollers.
Adjust or replace the carriage end rollers as
necessary.
To Next Page
