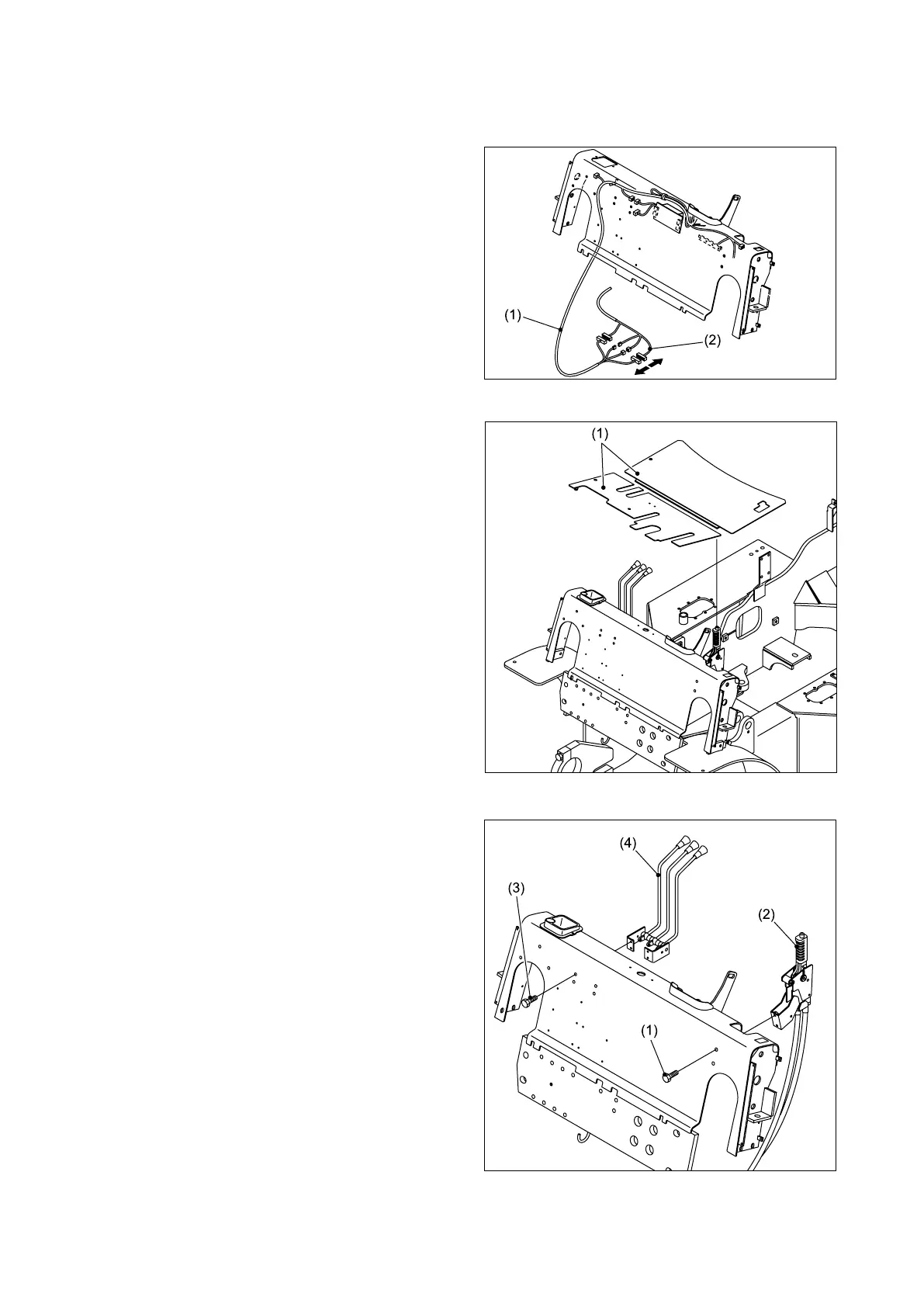

2.8 FRONT GUARD
■ REMOVAL
① Remove the overhead guard. (See “2.2 HOOD
AND OVERHEAD GUARD.”)
② Remove the steering wheel. (See “2.13
STEERING WHEEL.”)
③ Disconnect the connectors of the front guard
wire harness (1) from the connectors of the
engine wire harness (2).
④ Remove all the plastic covers.
⑤ Removetheoorboardkit(1).
⑥ Remove the bolts (1) and then remove the
parking brake lever (2).
⑦ Remove the bolts (3) securing the valve levers
(4) and remove the valve levers.
