2-26
Fig. 2.75
Fig. 2.77
Fig. 2.76

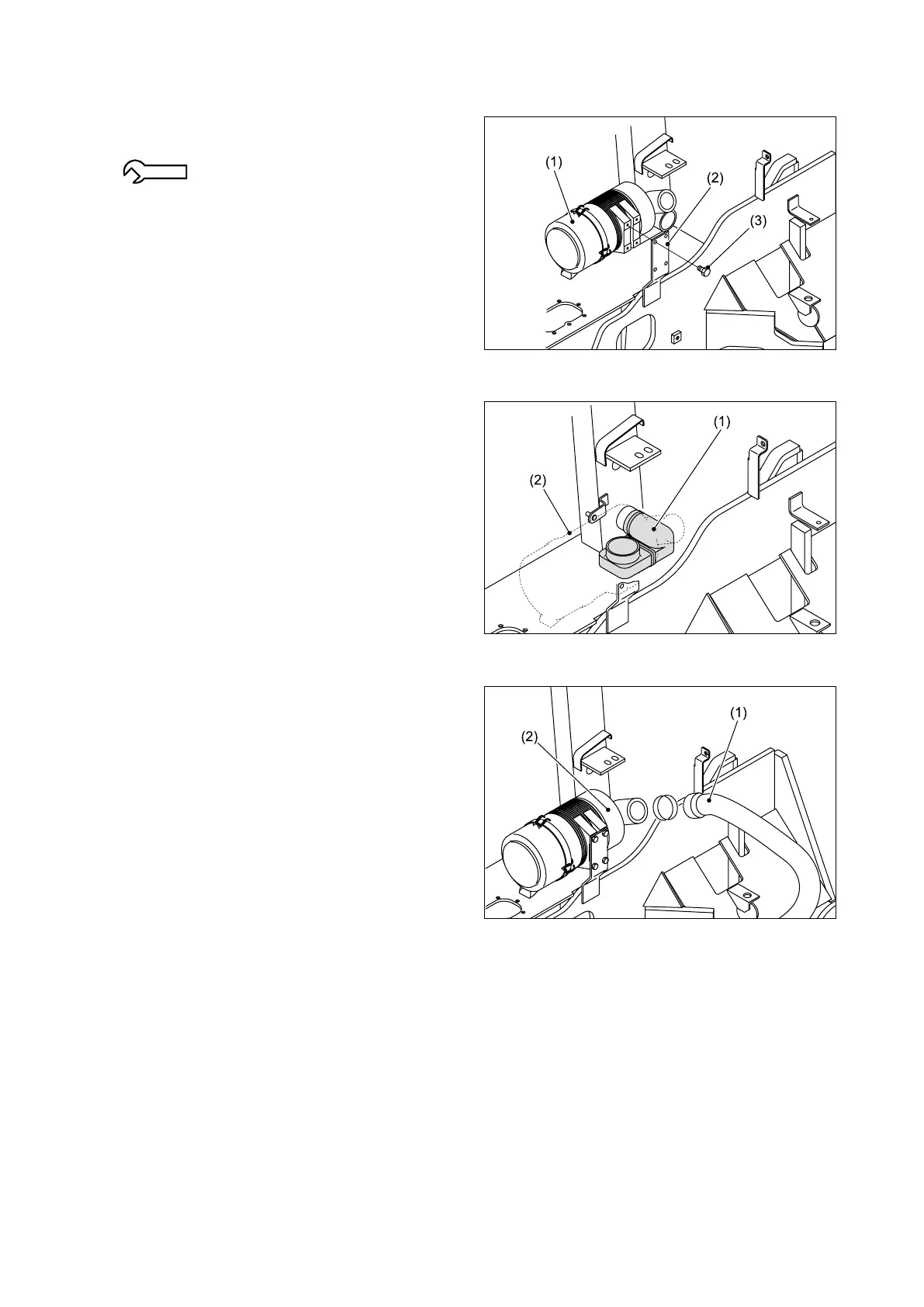

■ REINSTALLATION
① Install the air cleaner (1) on the bracket (2)
using the bolts (3).
7.8 to 11.7 N-m {0.8 to 1.2 kgf-m}
[5.8 - 8.6 lbf-ft]
② Connect one end of the plastic duct (1)
leading from the rear pipe, to the air cleaner
(2).
③ Remove the cover from the opening end of
the hose (1) that connects between the engine
and air cleaner. Connect the hose (1) to the air
cleaner (2).
④ Unlock the gas spring of the engine hood and
then close the engine hood.
To Next Page
