TCM FD35C9 - 3.4 Wheel Brake Disassembly and Reassembly

3-71
Fig. 3.226
Fig. 3.229
Fig. 3.228
Fig. 3.227
3.4 WHEEL BRAKE
3.4.1 (3.5- to 4.0-ton trucks)

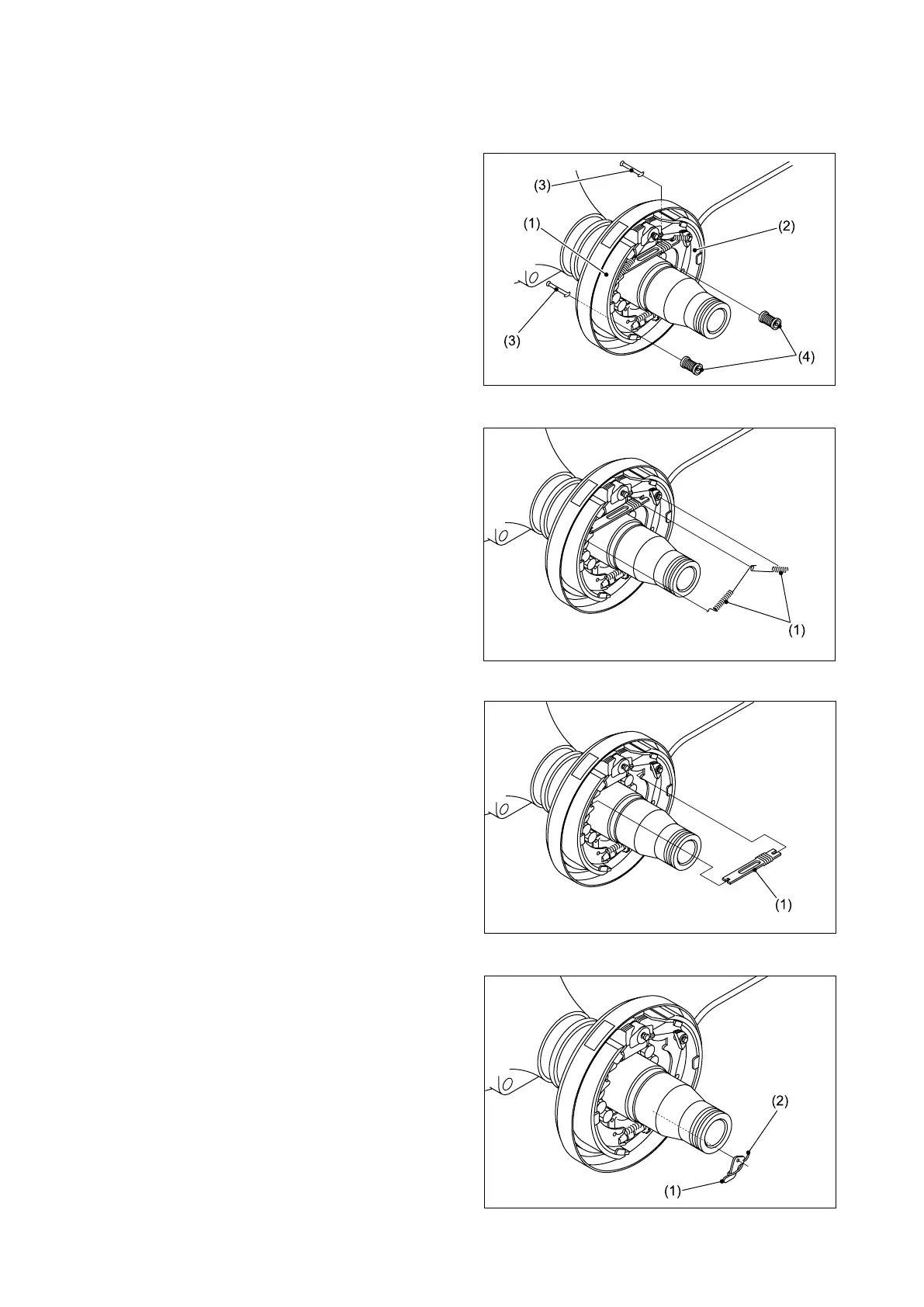

■ DISASSEMBLY
① Remove the hold pins (3) and spring retainers
(4) from each of the primary shoe (1) and
secondary shoe (2).
② Remove the two return springs (1).
③ Remove the strut (1).
④ Remove the adjuster lever (1) and spring (2).
(3)
(2)
(3)
(4)
ι
} 1 (
(2)
