3-158
Fig. 3.491
3.11.2 VFHM MAST
When adjusting or replacing the mast rollers or slippers or carriage rollers:
1. You can replace the rollers, slippers our carriage bearings without having to remove the mast from the
truck.
2. Caution: When lifting the inner mast for the purpose of repairing, take necessary measures to prevent
the inner mast from dropping before trying to repair. It is dangerous to rely on the hydraulic system
alone to support the inner mast.

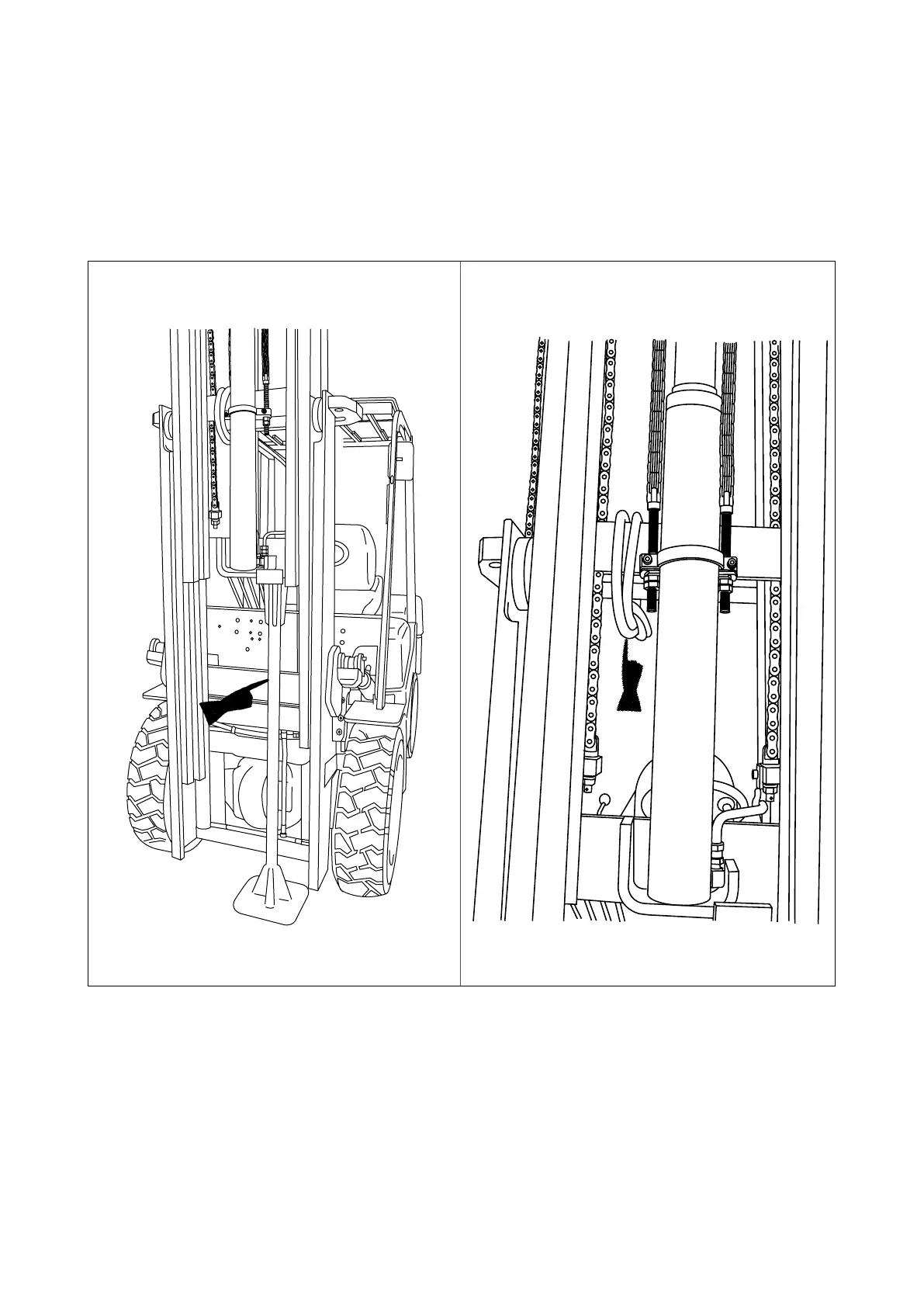

Jig that prevents inner mast from dropping
The inner mast is tied together
with the outer mast to prevent from dropping
