2-64
Fig. 2.170
Fig. 2.172
Fig. 2.171

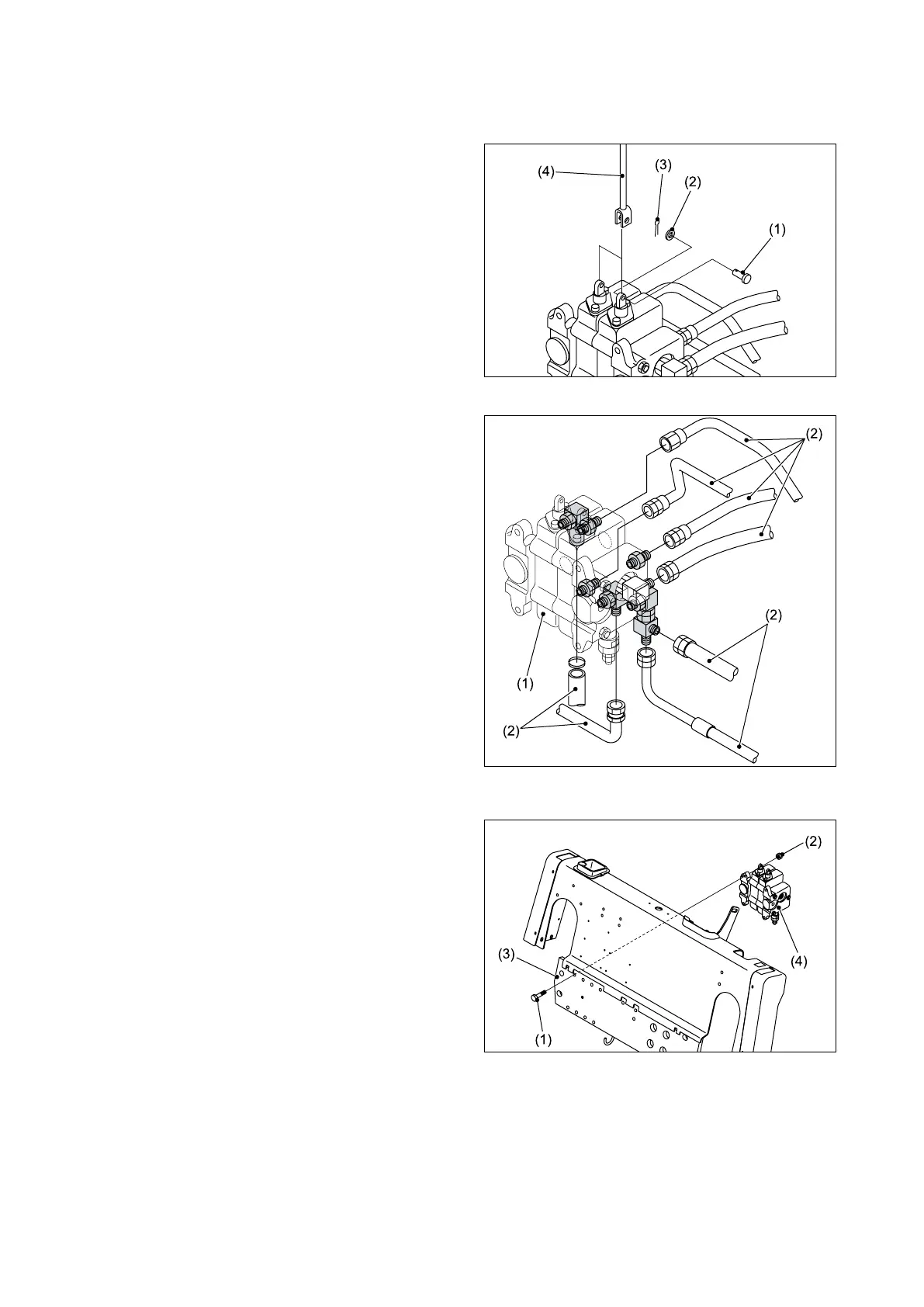

2.16 CONTROL VALVE
■ REMOVAL
① Remove the pin (1), washer (2), and cotter pin
(3). Then remove the rod (4) from each spool.
② Disconnect the hoses (2) from the control
valve (1).
Temporarily secure each return hose with its
end at a level that is higher than the oil level
in the tank.
③ Remove the bolts (1) and nuts (2). Then
remove the control valve (4) from the front
plate (3).
