2-65
Fig. 2.173
Fig. 2.175
Fig. 2.174

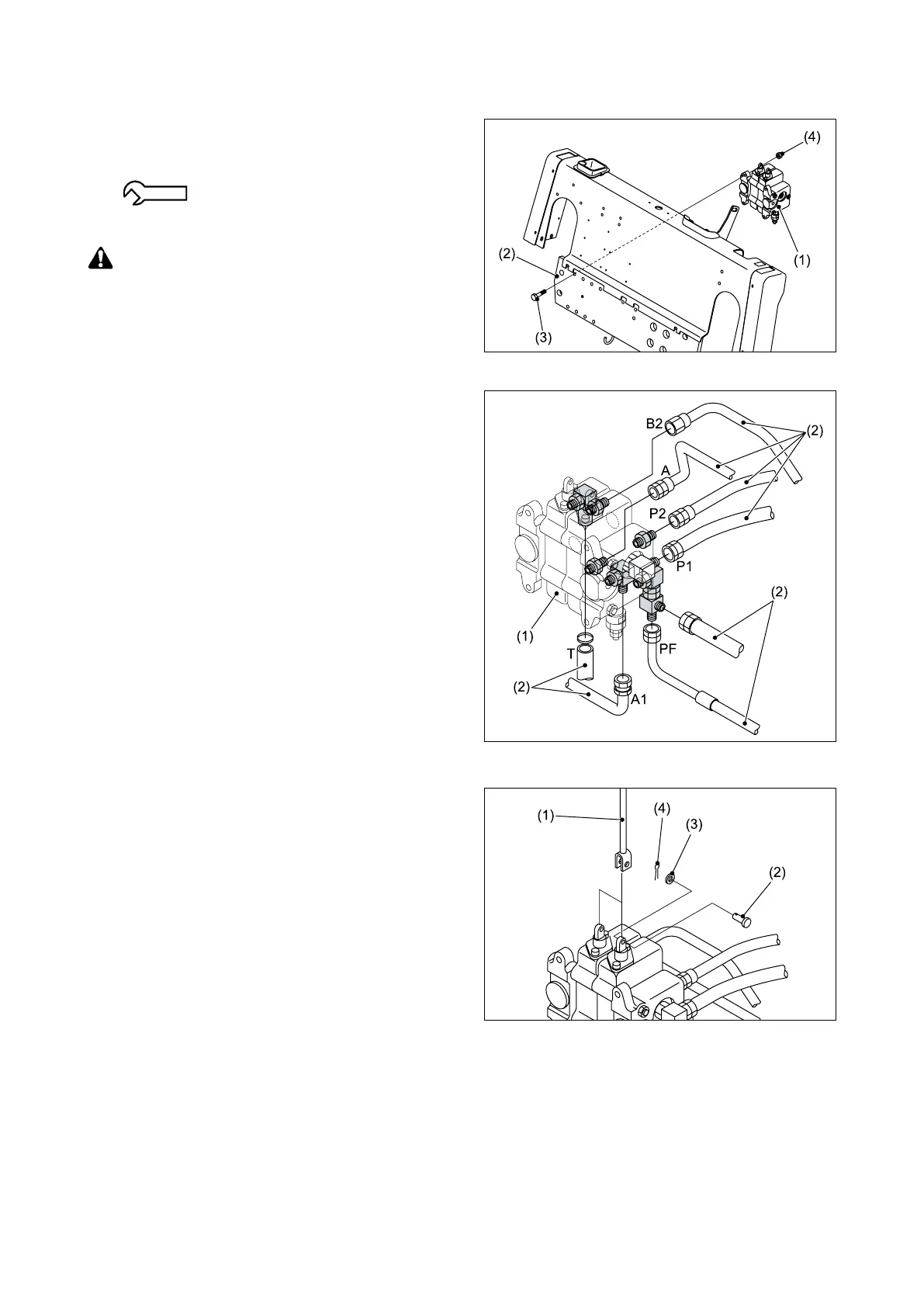

■ REINSTALLATION
① Install the control valve (1) on the front plate
(2). Then secure it using the bolts (3) and nuts
(4).
27.7 - 41.5 N-m {2.8 - 4.2 kgf-m}
[20.4 - 30.6 lbf-ft]
Apply LOCTITE #262 or SCOTCH GRIP
2352 to the threads of the bolts (3).
② Connect the hose (2) to each port of the
control valve (1).
Port P1: From the main pump.
Port P2: To the priority valve.
Port PF: To the steering gear box.
Port T: To the oil tank.
Port A1: To the lift cylinder.
Port A: To the tilt cylinder.
Port B2: To the tilt cylinder.
③ Connect the rod (1) to each spool and then
secure it using the pin (2), washer (3), and
cotter pin (4).
To Next Page
