3.1.3 CLUTCH BOOSTER
Have a repair kit handy before starting
the disassembly. Use the new parts from
the kit during reassembly.
■ DISASSEMBLY

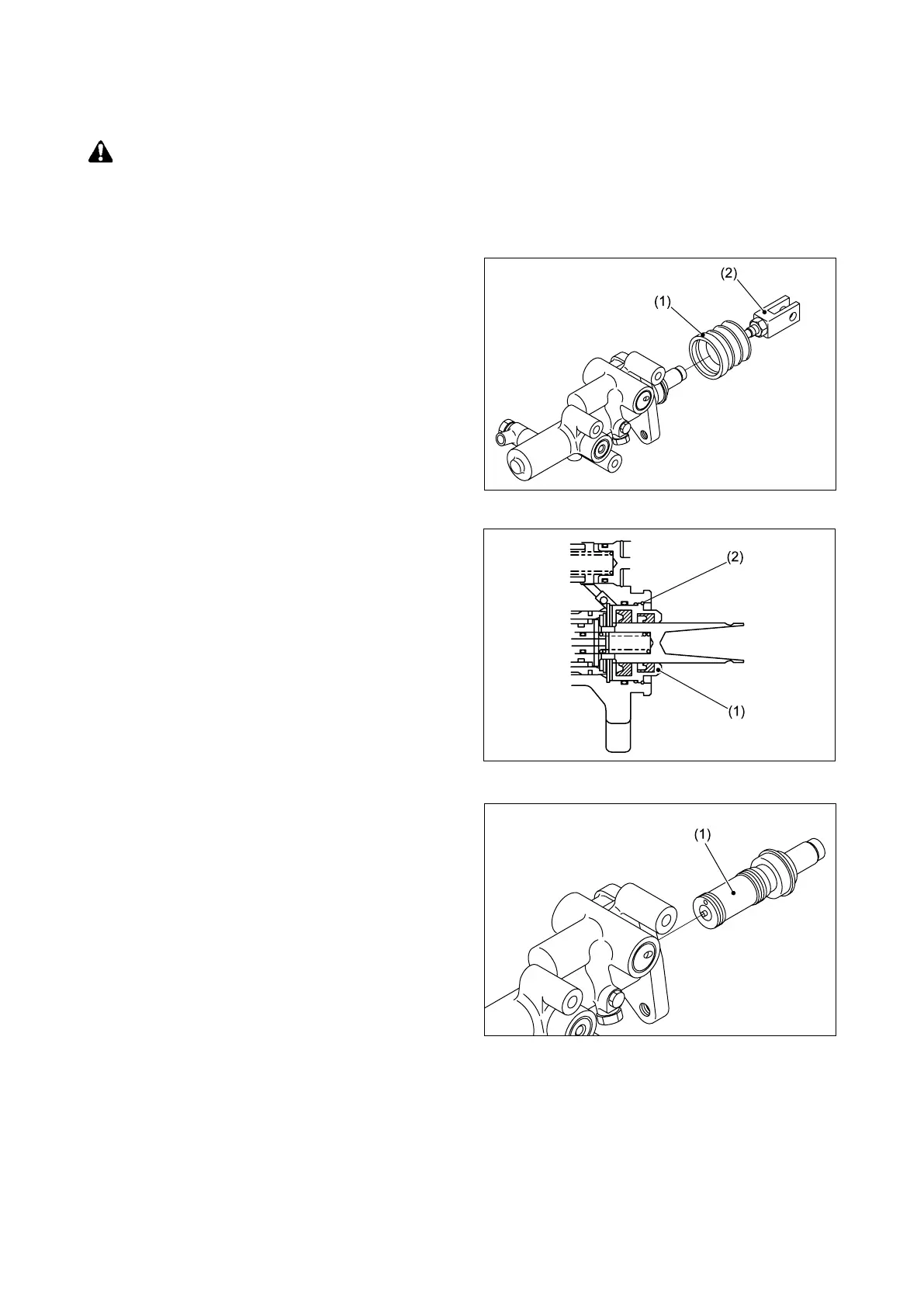

① Remove the push rod assembly (2) along with
the boot (1).
② Slightly push in the guide assembly (1) and
remove the stopper ring (2).
③ Remove the reaction piston assembly (1).
Fig. 3.28
Fig. 3.27
Fig. 3.26
