3-50
Fig. 3.163
Fig. 3.165
Fig. 3.164

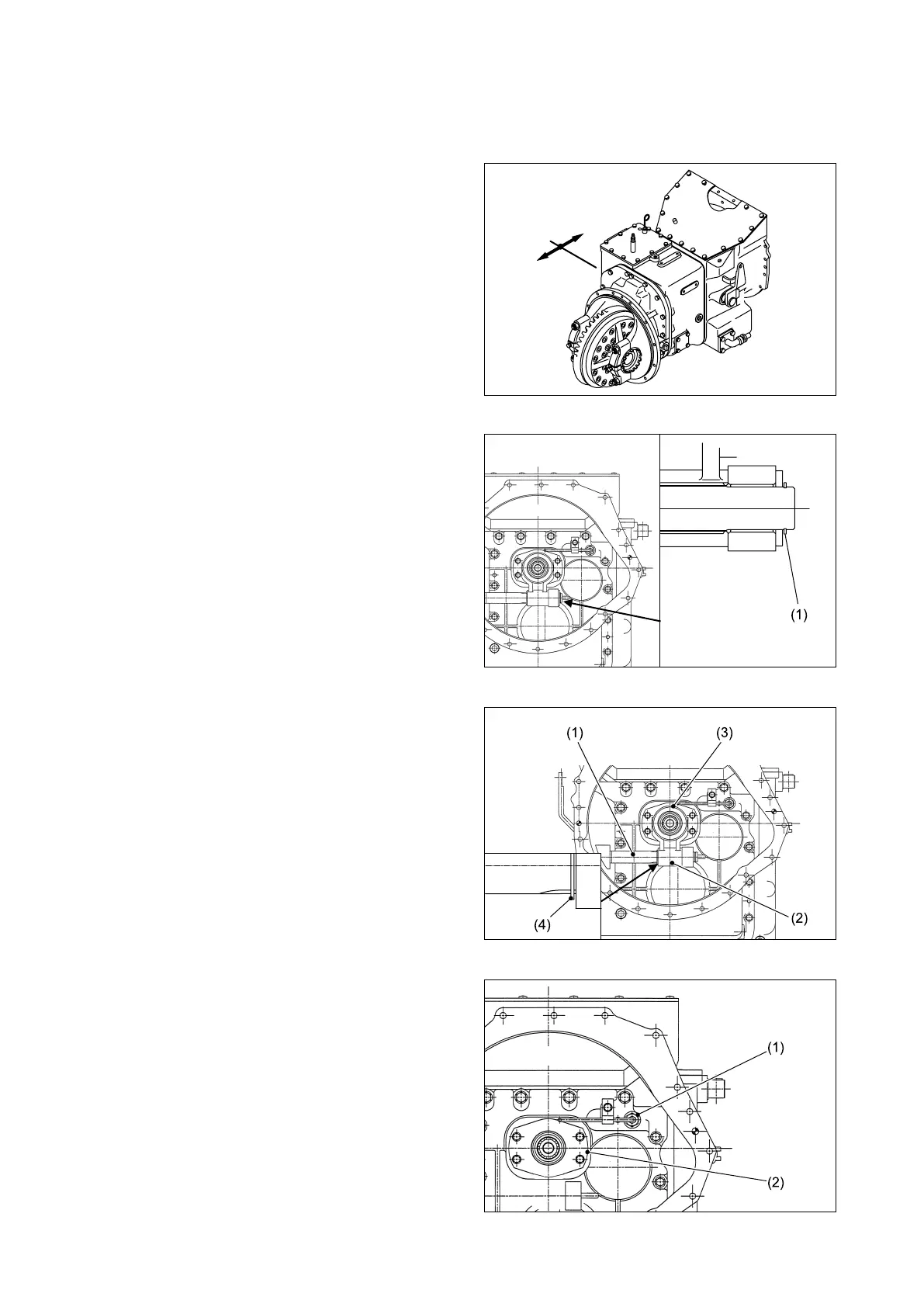

3.2.2 SYNCHROMESH TYPE
TRANSMISSION
■DISASSEMBLING CLUTCH
HOUSING
① Remove the differential from the transmission.
② Remove the snap ring (1) from the shaft of the
clutch release arm.
③ Holding the yoke by hand, pull out the clutch
release arm (1) from the yoke, and then
remove the yoke (2) and retainer (3).
Remove the snap ring (4) from the shaft and
then remove the clutch release arm from the
clutch housing.
Note: You can remove the retainer at the first
stage of disassembly because it is not
secured to anywhere.
④ Remove the nozzle (1) and support (2).
Fig. 3.166
