TCM FD35C9 - 2.4 Counterweight Removal and Reinstallation

2-18
Fig. 2.53
Fig. 2.55
Fig. 2.54

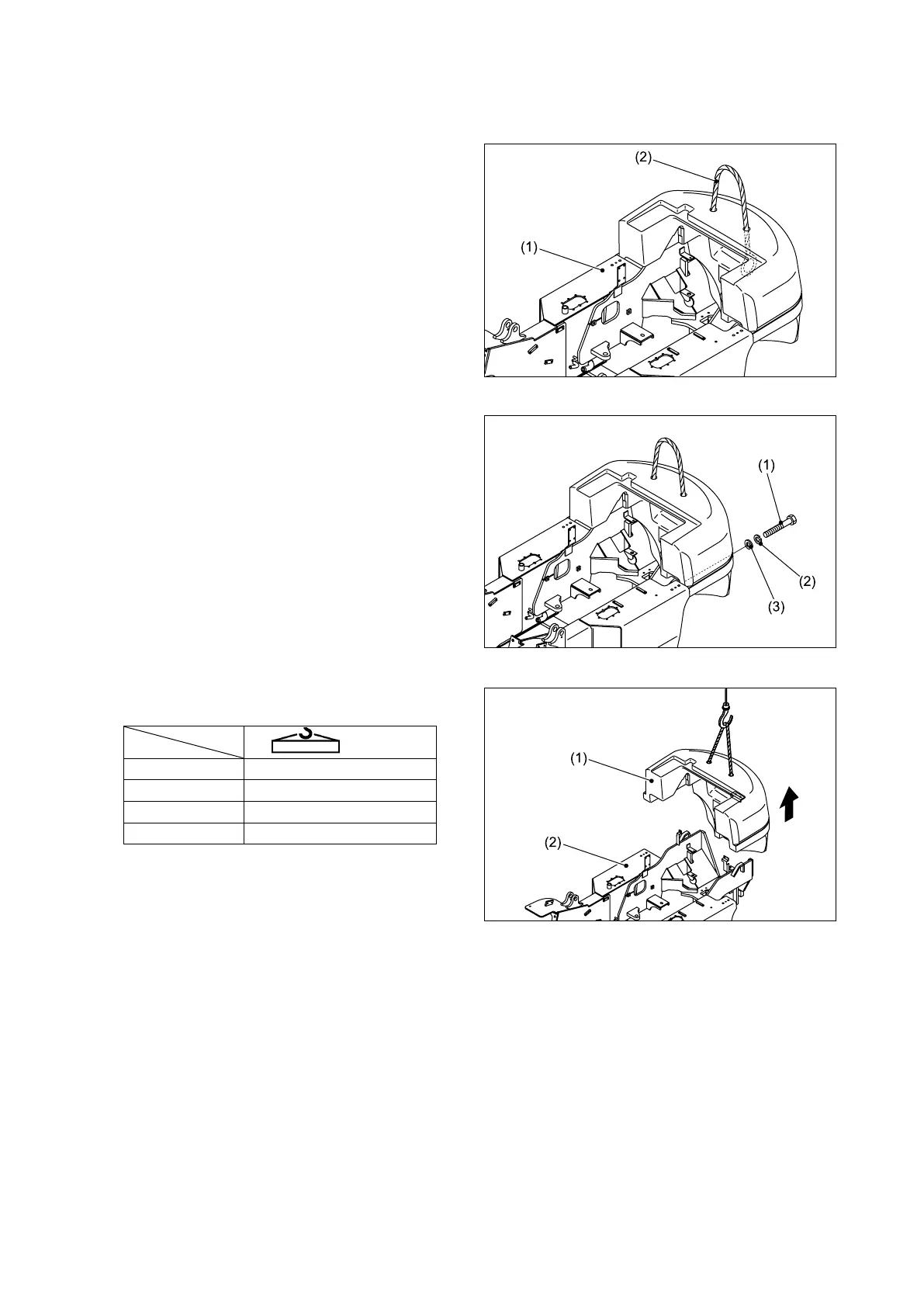

2.4 COUNTERWEIGHT
■ REMOVAL
① Pass a wire rope (2) through each hole in the
counterweight (1) and then attach a ring to
each end of the wire rope.
② Remove the bolts (1), spring washers (2), and
washers (3) securing the counterweight.
③ Hoist the counterweight (1) off the frame (2).
(kg [lbs])
3.5 tons 2044 [4506]
4.0 tons 2474 [5454]
4.5 tons 2764 [6094]
5.0 tons 2764 [6094]
