2-19
Fig. 2.56
Fig. 2.57

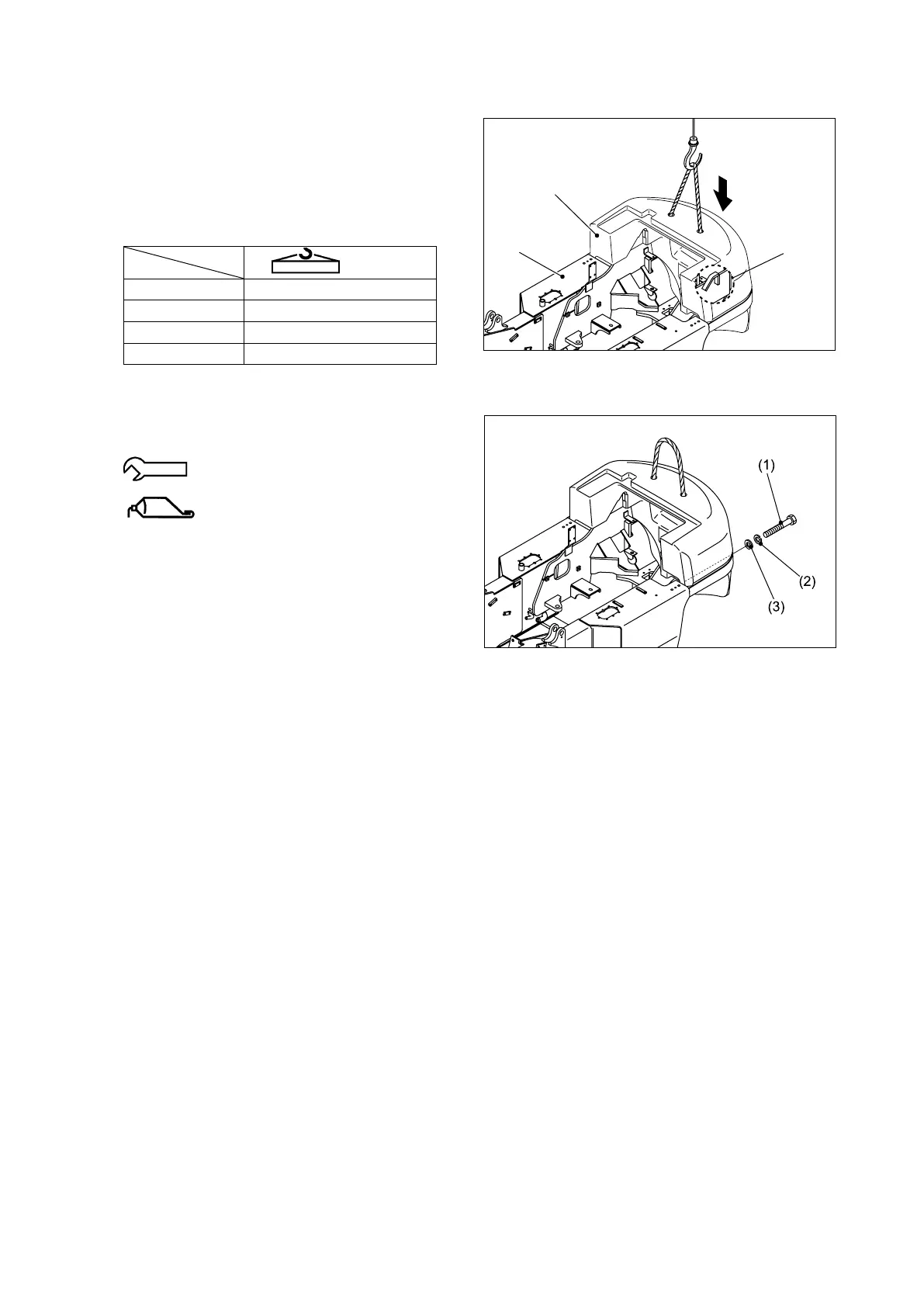

■ REINSTALLATION
① Hoist the counterweight (1) and place it in its
mounting position at the rear section of the
frame (2).
Align section A of the frame with the recess
of the counterweight.
(kg [lbs])
3.5 tons 2044 [4506]
4.0 tons 2474 [5454]
4.5 tons 2764 [6094]
5.0 tons 2764 [6094]
② Secure the counterweight in place using the
bolts (1), spring washers (2), and washers (3).
417 - 624 N-m {42.5 - 63.6 kgf-m}
[307.6 - 460.2 lbf-ft]
Apply LOCTITE #572.
