TCM FD35C9 - 2.5 Muffler Removal and Reinstallation

2-20

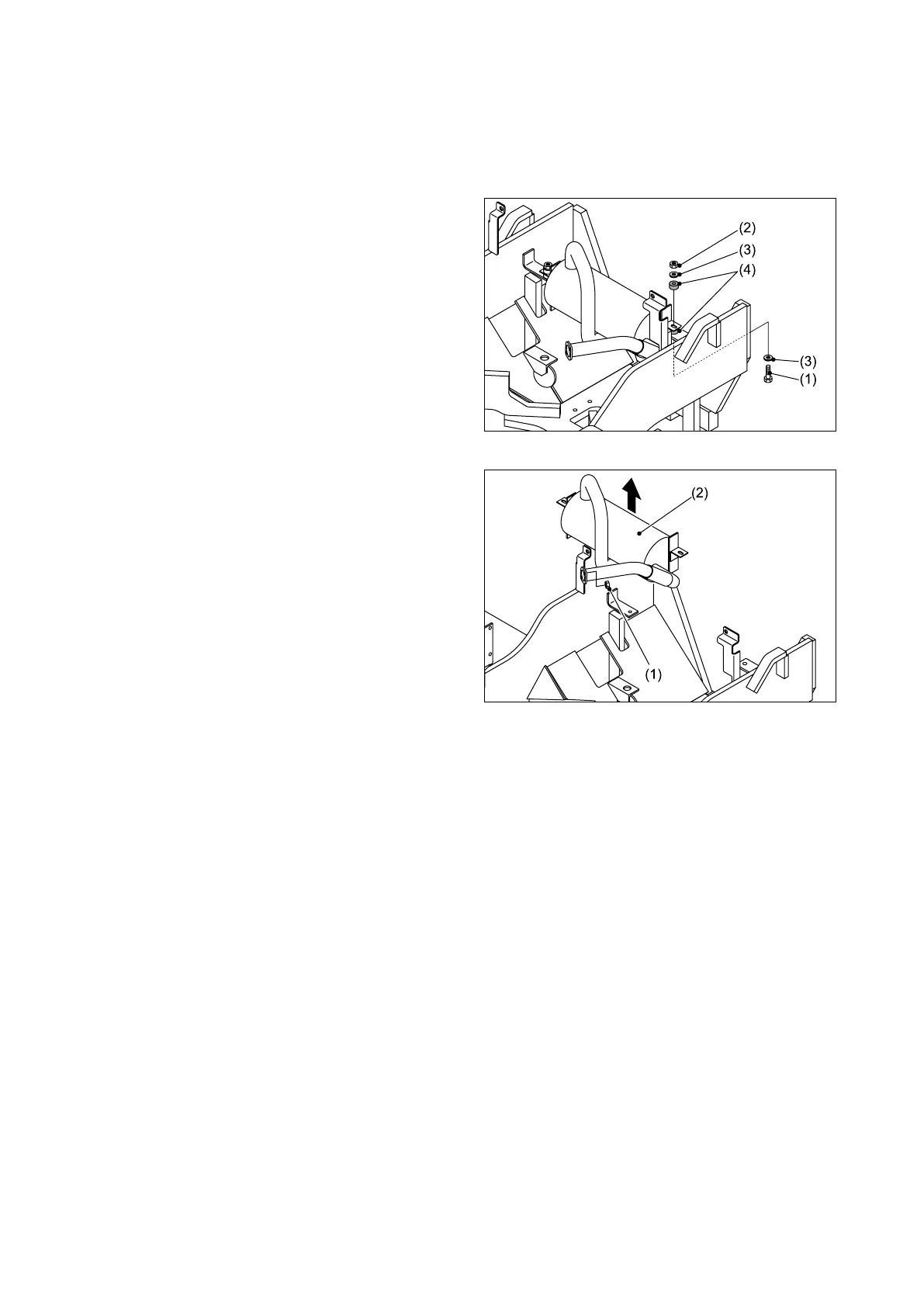

Fig. 2.58
Fig. 2.59
2.5 MUFFLER
■ REMOVAL
① Rem ove the counterweight. (S ee “2.4
COUNTERWEIGHT.”)
② Remove the bolt (1) and nut (2) securing
the muffler, and remove the washers (3) and
cushions (4).
③ Removethenut(1)ontheengine-sideange,
andthenremovethemufer(2).
