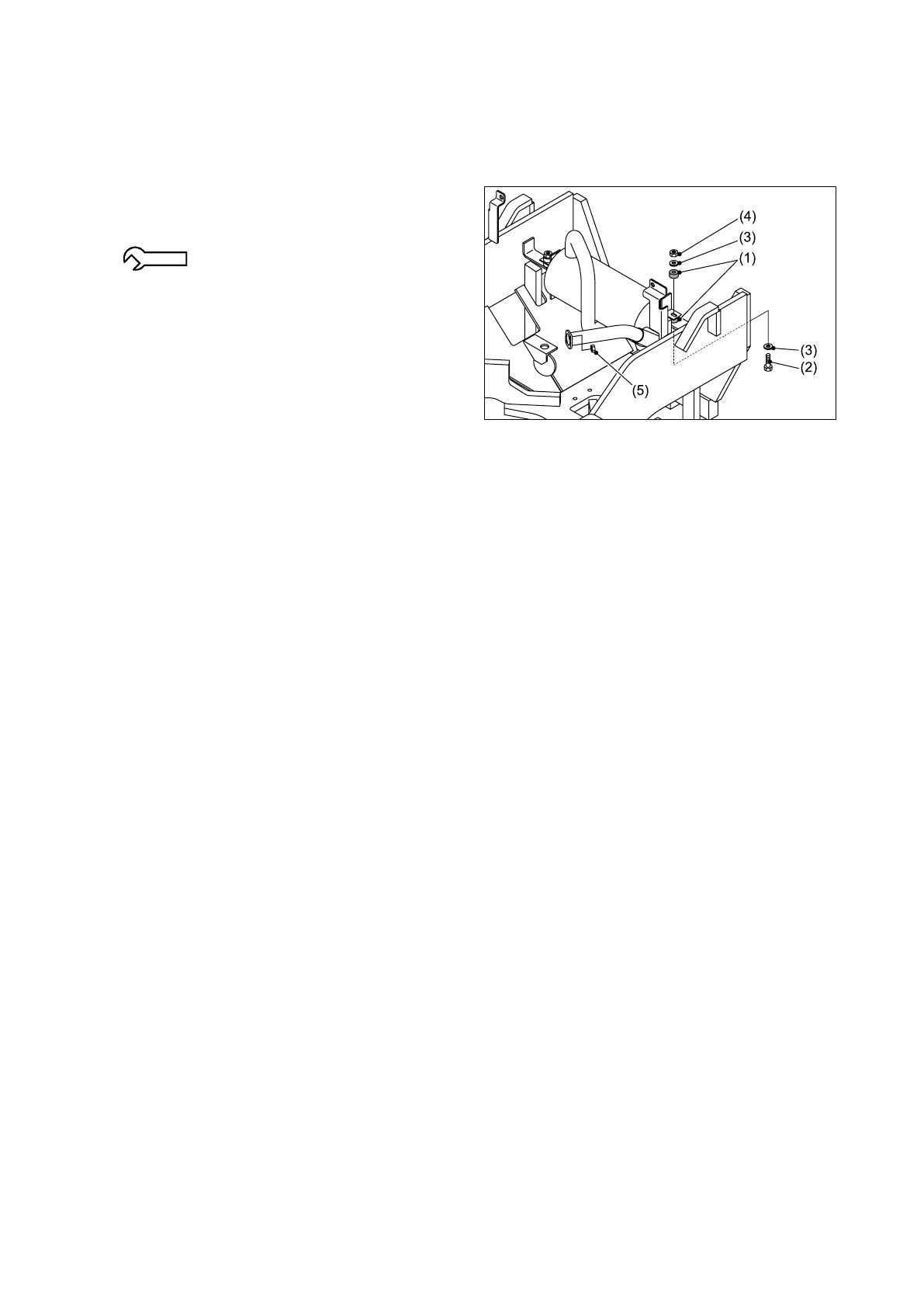

Fig. 2.60
■ REINSTALLATION
① Installthemufer-sideangeontothestudof
theexhaustmanifoldange.
② Securethemuferusingthecushions(1),bolt
(2), washers (3) and nut (4). Install the nut (5)
ontheengine-sideange.
Nut (4): 11 N-m {1.1 kgf-m}
[8.1 lbf-ft]
Nut (5): 21.2 N-m {2.16 kgf-m}
[15.6 lbf-ft]
③ I n s tall the counterwei g h t . ( S e e “ 2 . 4
COUNTERWEIGHT.”)
