TCM FD35C9 - 2.9 B Brake and Clutch Pedal Procedures (Manual Transmission Trucks)

2-34
Fig. 2.99
Fig. 2.98
Fig. 2.97
2.9B BRAKE PEDAL AND CLUTCH PEDAL (manual transmission trucks)
■ REMOVAL
① Removetheoorboardkit.(See“2.8FRONT
GUARD.”)

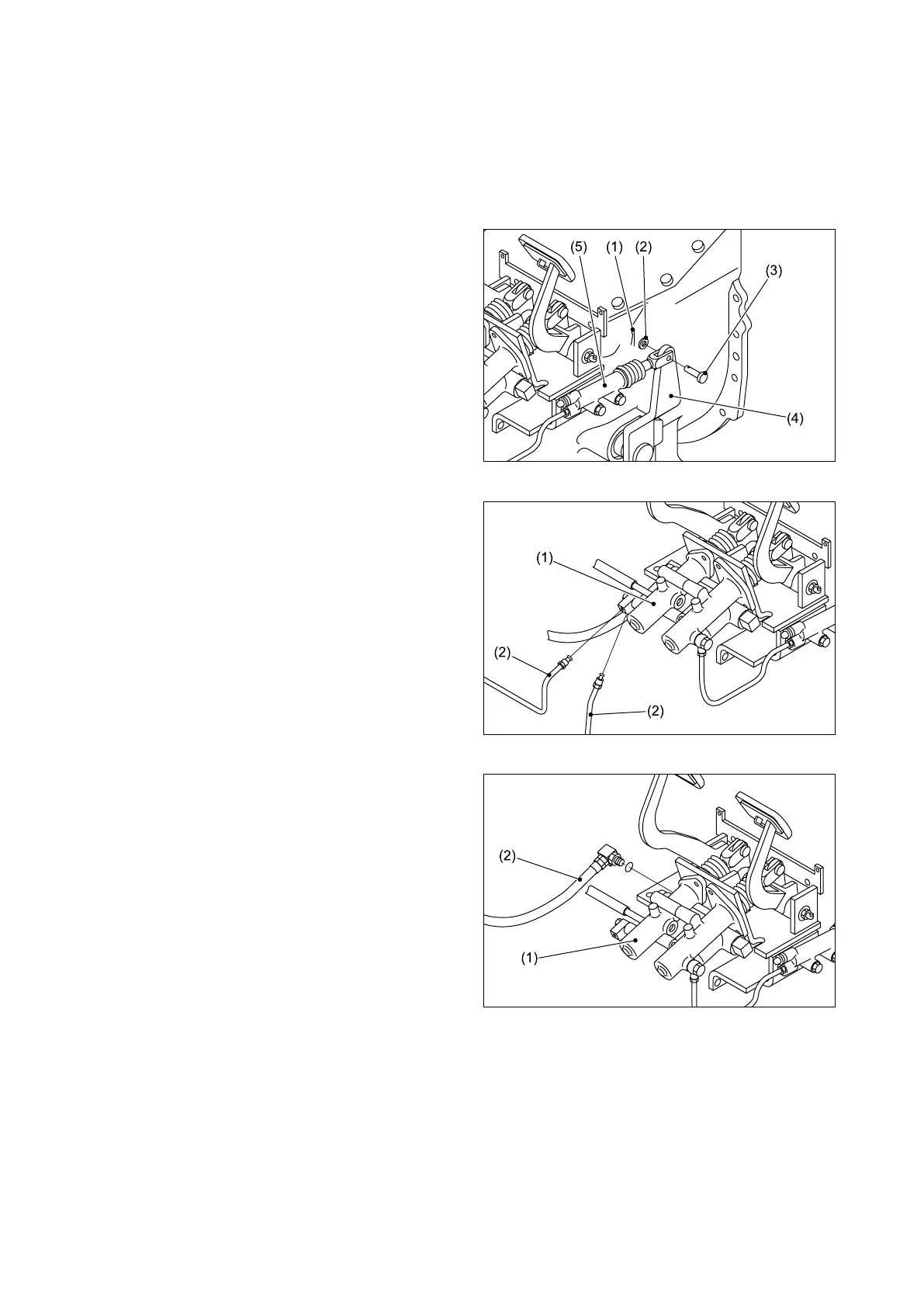

② Remove the split pin (1), washer (2) and
pin (3), and then remove the clutch release
cylinder (5) from the arm (4).
③ Remove the brake pipes (2) from the brake
booster (1).
④ Remove the high-pressure hose (2) from the
brake booster (1).
