TCM FD35C9 - CLUTCH PEDAL and BRAKE PEDAL (Manual Transmission Trucks)

3-5
3.1.2 CLUTCH PEDAL AND BRAKE
PEDAL (manual transmission
trucks)

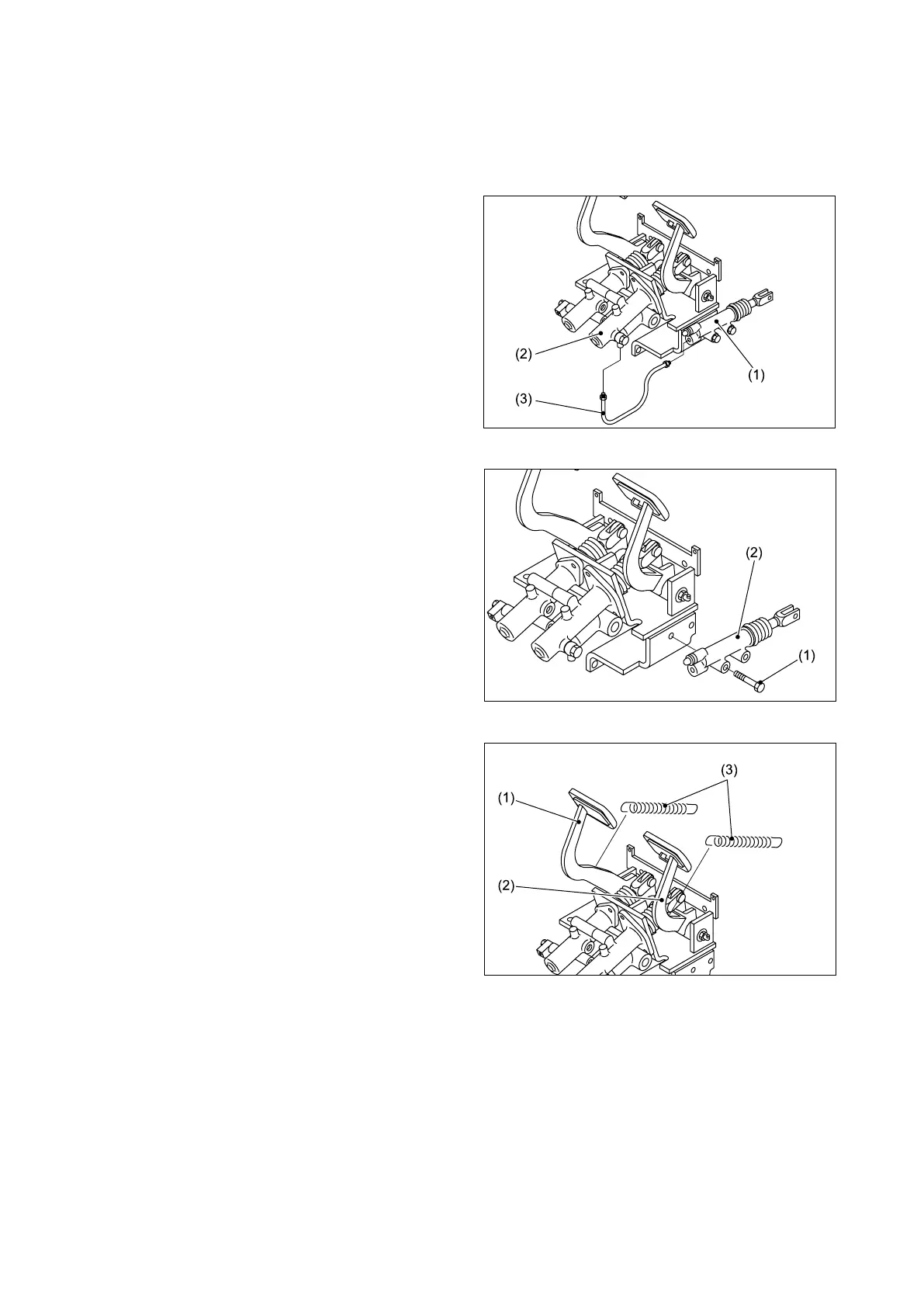

■ DISASSEMBLY
① Remove the pipe (3) connecting the clutch
release cylinder (1) and the clutch booster (2).
② Remove the bolts (1) and remove the clutch
release cylinder (2).
③ Remove the springs (3) from the brake pedal
(1) and clutch pedal (2).
Fig. 3.16
Fig. 3.15
Fig. 3.14
