3-4
Fig. 3.11
Fig. 3.13
Fig. 3.12

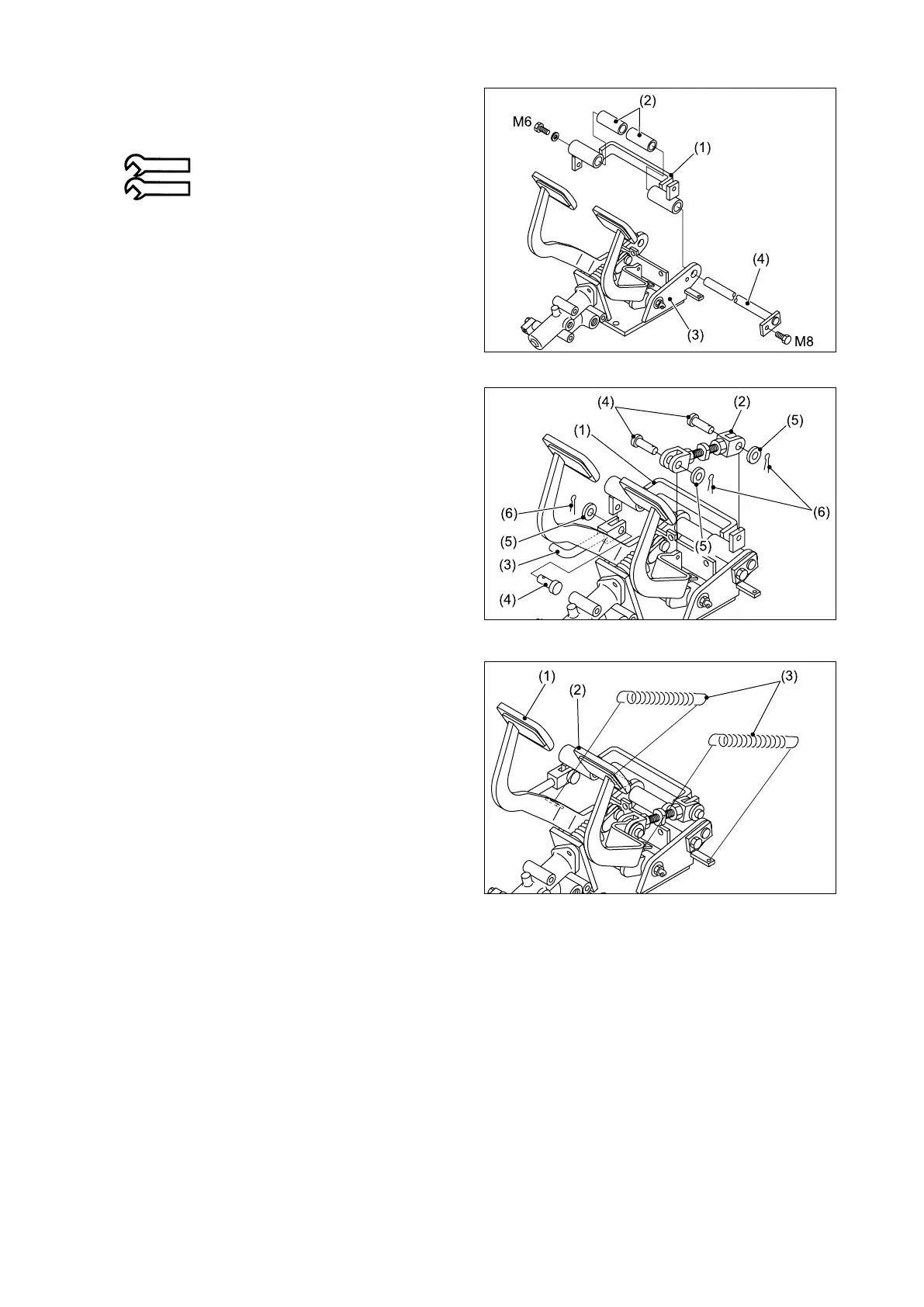

④ Place the linkage (1) and spacers (2) in the
pedal bracket (3). Then secure them using the
shaft (4).
M8: 9.8 N-m {1.0 kgf-m} [7.2 lbf-ft]
M6: 4.0 N-m {0.4 kgf-m} [3.0 lbf-ft]
⑤ Install the joint (2) and inching rod (3) on the
linkage (1) using the pins (4), washers (5),
and split pins (6).
⑥ Install the springs (3) on the brake pedal (1)
and inching pedal (2).
