2-52
Fig. 2.134
Fig. 2.136
Fig. 2.135

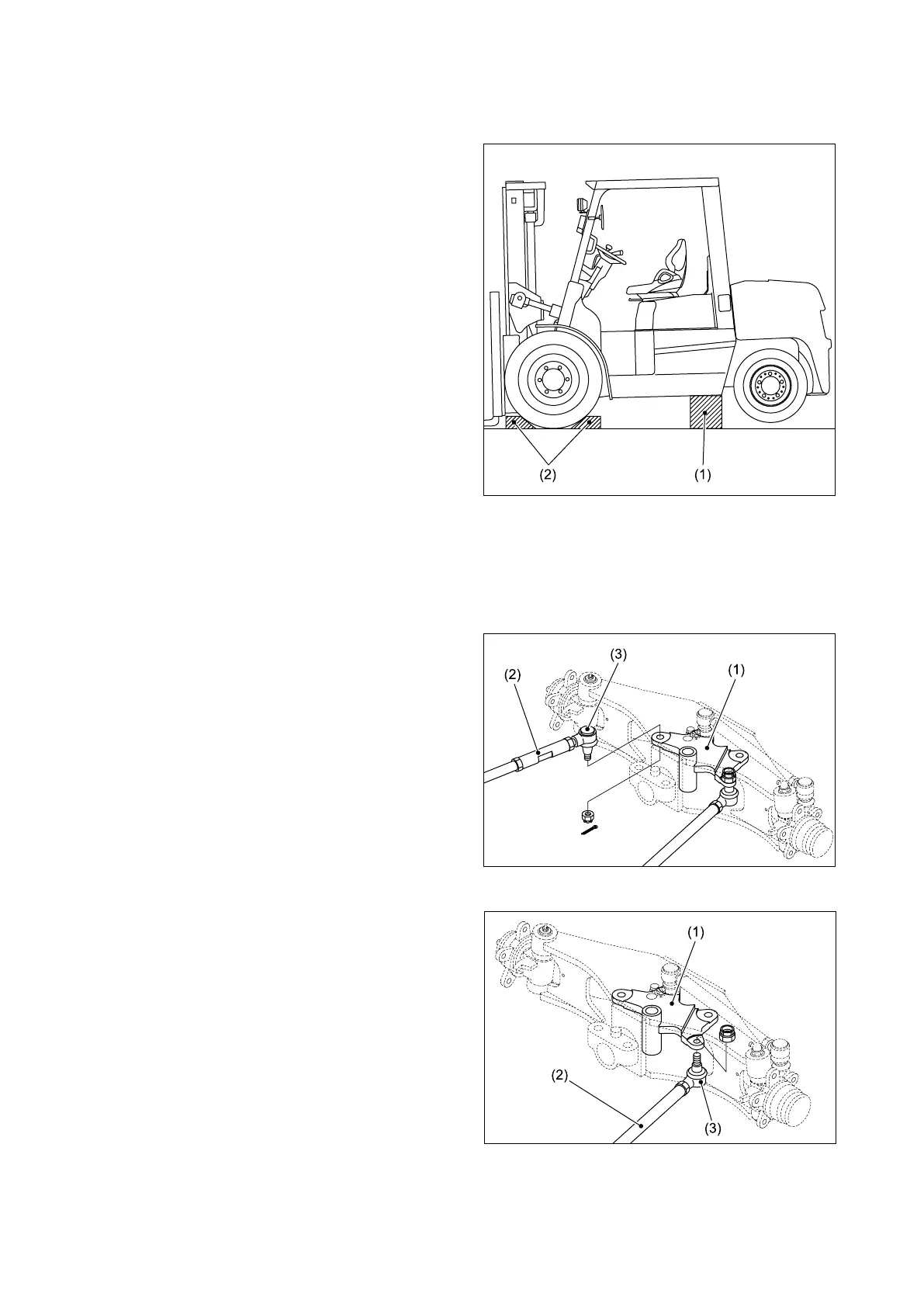

2.12 STEERING AXLE
■ REMOVAL
① Jack up the rear wheels and support the frame
of the truck with a stand (1). Place blocks (2)
on each front wheel.
② Rem ove the counterweight. (S ee “2.4
COUNTERWEIGHT.”)
③ Remove the wheels.
④Remove the ball joint (3) of the steering
cylinder rod (2) from the center arm (1).
⑤ Remove the ball joint (3) of the drag link (2)
from the center arm (1).
To Next Page
