TCM FD35C9 - 3.6 Steering Cylinder Disassembly and Reassembly

3-99
Fig. 3.316
Fig. 3.319
Fig. 3.318
Fig. 3.317

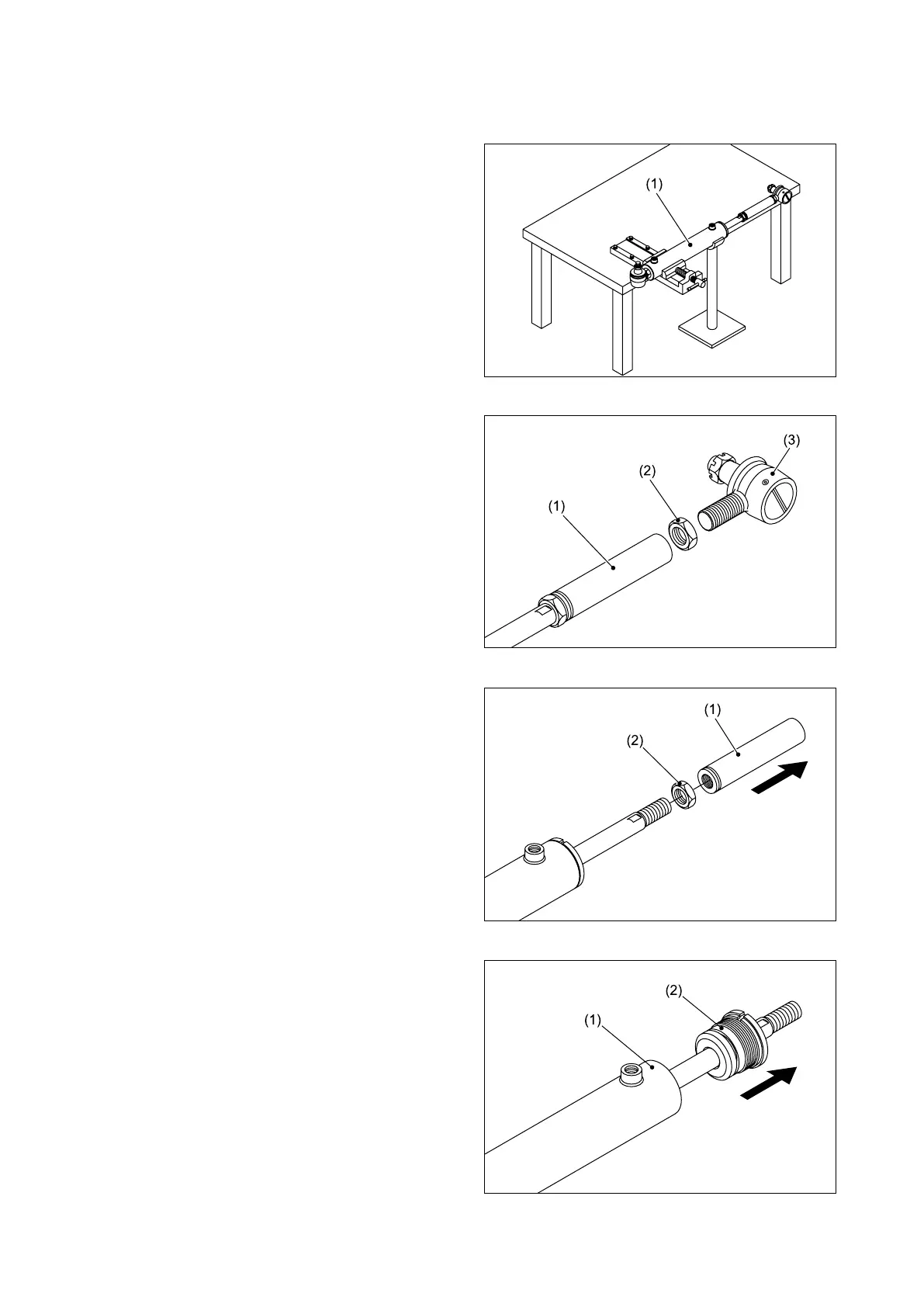

3.6 STEERING CYLINDER
■DISASSEMBLY
① Hold the steering cylinder assembly (1) in a
vise.
② Loosen the nut (2) on the rod (1) and remove
the ball joint assembly (3).
③ Loosen the nut (2) on the rod (1) and remove
the rod (1).
④ Extend the caulked part of the cylinder (1)
outward and remove the cylinder cap (2).
