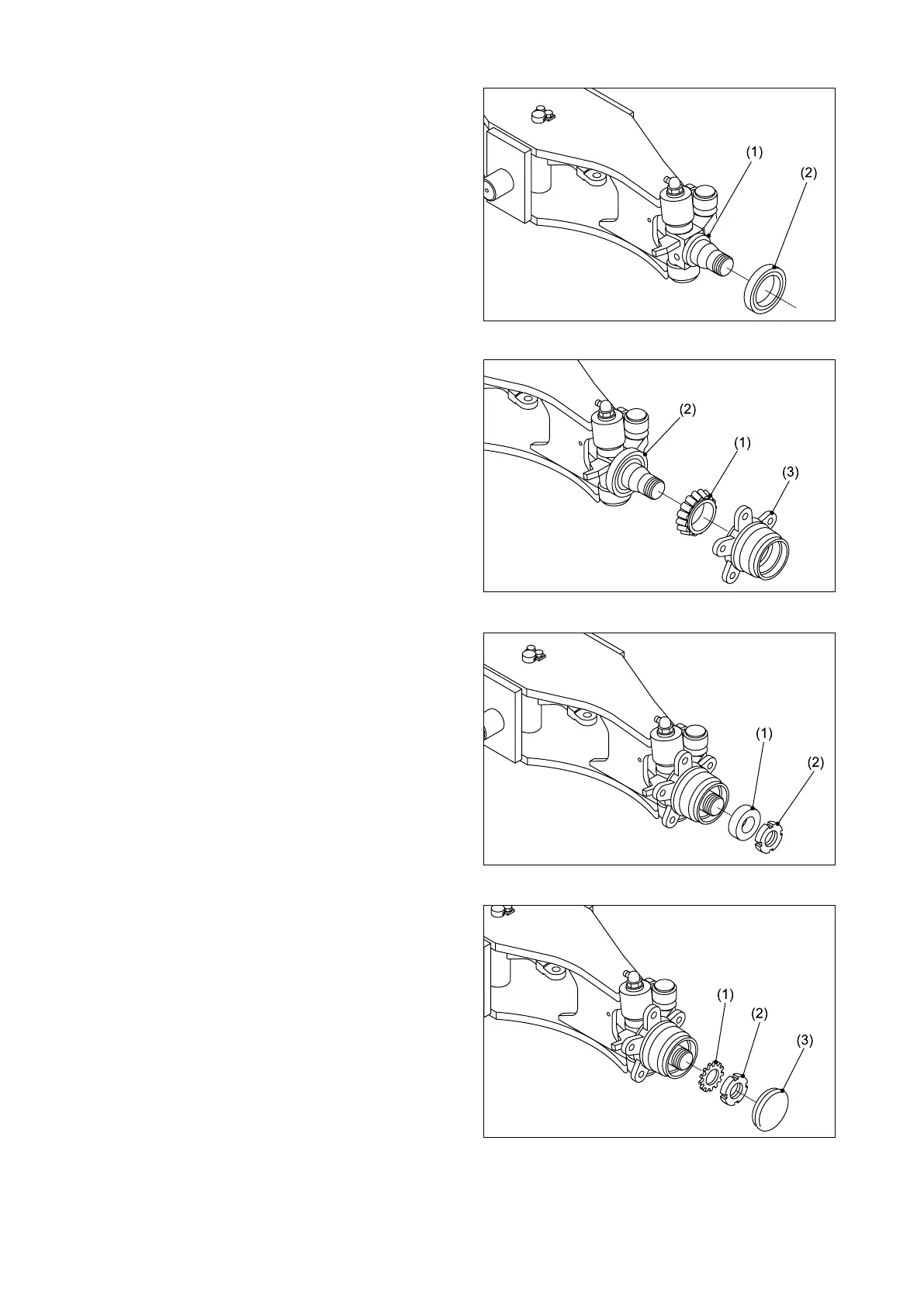

⑬ Install the oil seal (2) onto the spindle (1) of
the knuckle.
Note: Pay attention to the direction of the oil seal.
⑭ Install the tapered roller bearing cone (1) onto
the spindle of the knuckle.
Install the hub (3) onto the spindle against the
oil seal (2) installed in step ⑬ .
⑮ Install the tapered roller bearing (1) and
bearing nut (2) onto the knuckle spindle.
Adjust the preload with the bearing nut.
Preload: 2.9 - 7.9 N-m {0.3 - 0.8 kgf-m}
[2.14 - 5.8 lbf-ft]
⑯ Lock the knuckle spindle with the lock washer
(1) and lock nut (2), and install the wheel cap
(3).
