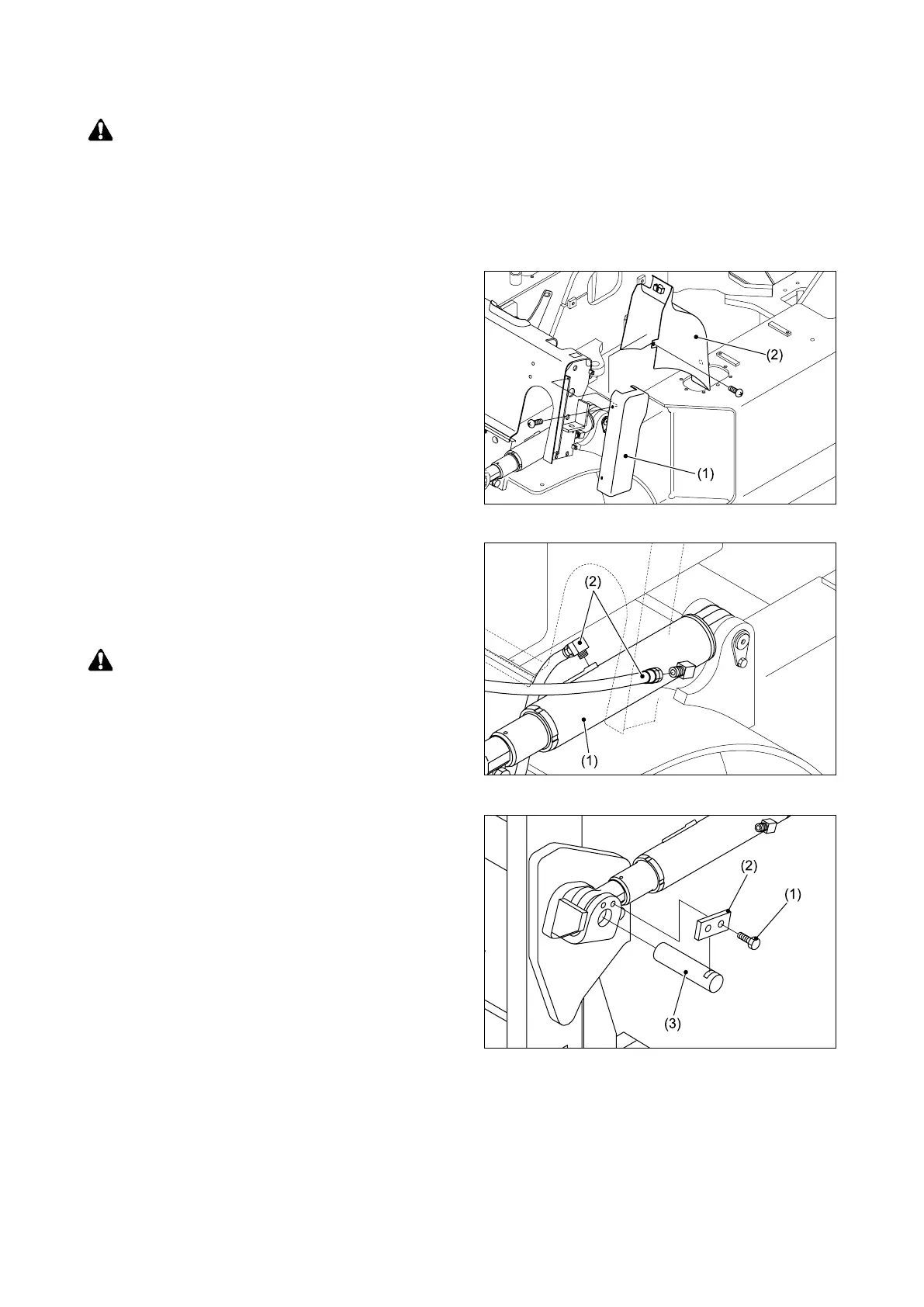

2.14 TILT CYLINDER
When disassembling or reassembling the
tilt cylinder, make sure to support the
outer channel of the mast using a crane
and wire ropes.
■ REMOVAL
① Remove the plastic covers (1) and then
remove the tilt cylinder covers (2).
② Disconnect the hoses (2) from the tilt cylinder
(1).
Before disconnecting these hoses, release any
residual pressure in the system by operating
the tilt lever.
Caution must be taken when removing the
hoses. The oil may spurt.
③ Remove the bolts (1) and plates (2). Then
remove the connecting pins (3) from the mast.
To Next Page
