3.2 DRIVE UNIT
3.2.1 TORQUE CONVERTER TYPE
TRANSMISSION
■ DISASSEMBLING THE UNIT

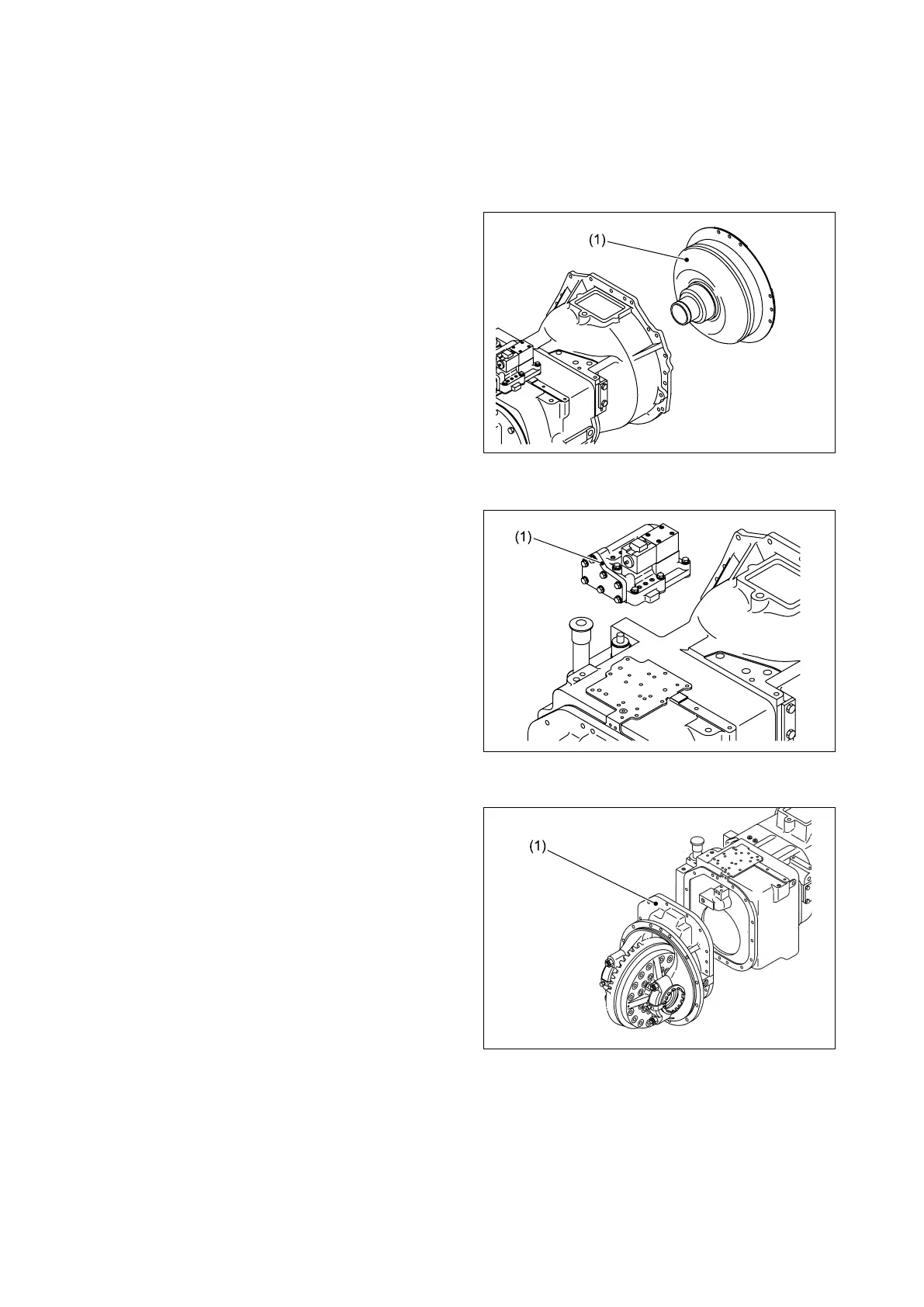

① Remove the torque converter assembly (1).
② Remove the transmission control valve (1).
Note: Remove the old gaskets from the mating
surfaces. Use caution to prevent gasket
scraps from entering the oil or screw holes.
③ Remove the differential assembly (1).
Note: Remove the old gaskets from the mating
surfaces. Use caution to prevent gasket
scraps from entering the oil or screw holes.
