TCM FD35C9 - 3.1 Clutch Pedal and Brake Pedal Procedures

3-1
3.1 CLUTCH PEDAL AND BRAKE
PEDAL
3.1.1 BRAKE PEDAL
(automatic transmission trucks)
■ DISASSEMBLY

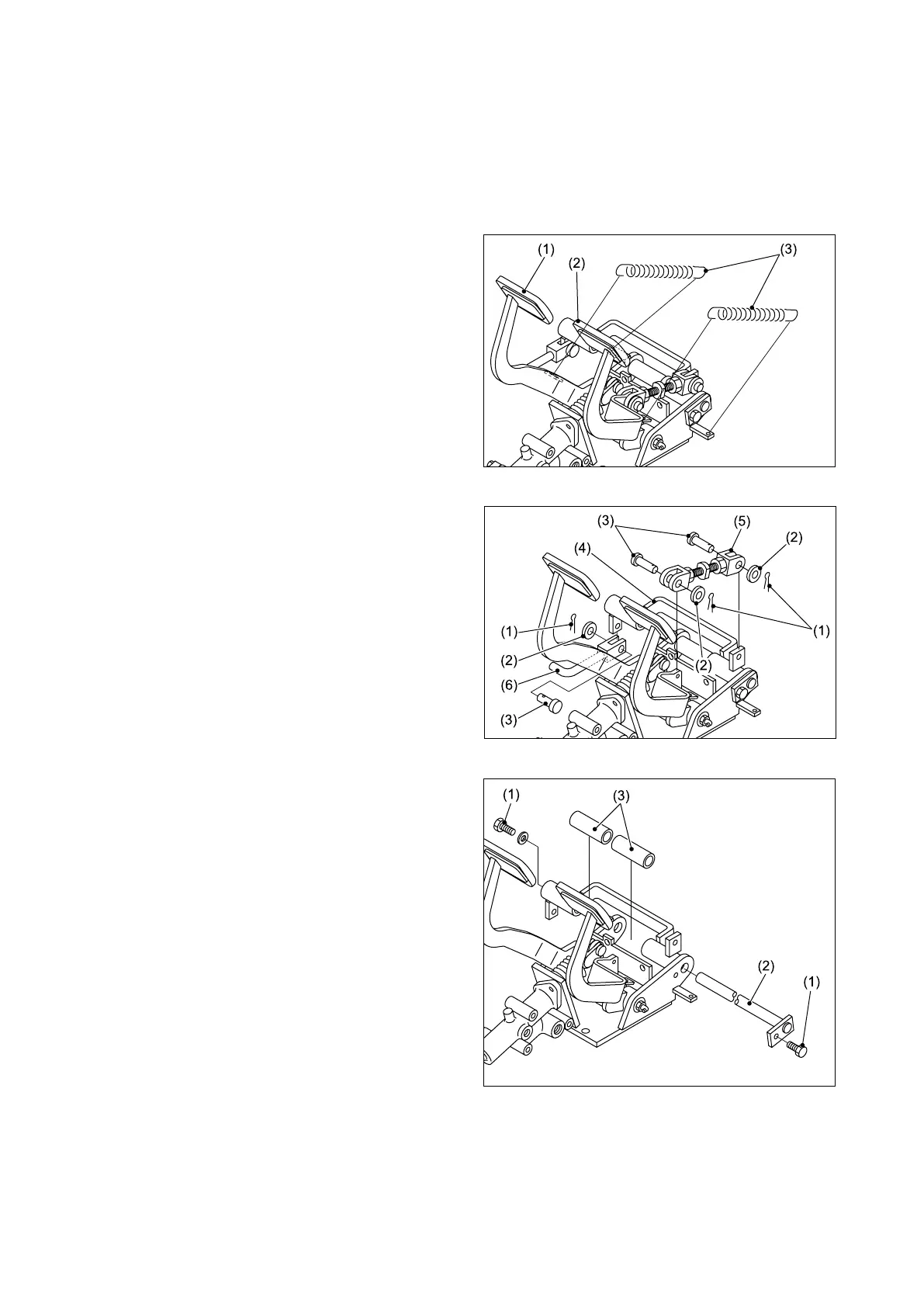

① Remove the springs (3) from the brake pedal
(1) and inching pedal (2).
② Remove the split pins (1), washers (2), and
pins (3). Then remove the joint (5) and
inching rod (6) from the linkage (4).
③ Remove the bolts (1) and remove the shafts (2)
and spacers (3).
Fig. 3.1
Fig. 3.3
Fig. 3.2
