3.5 STEERING AXLE
■DISASSEMBLY

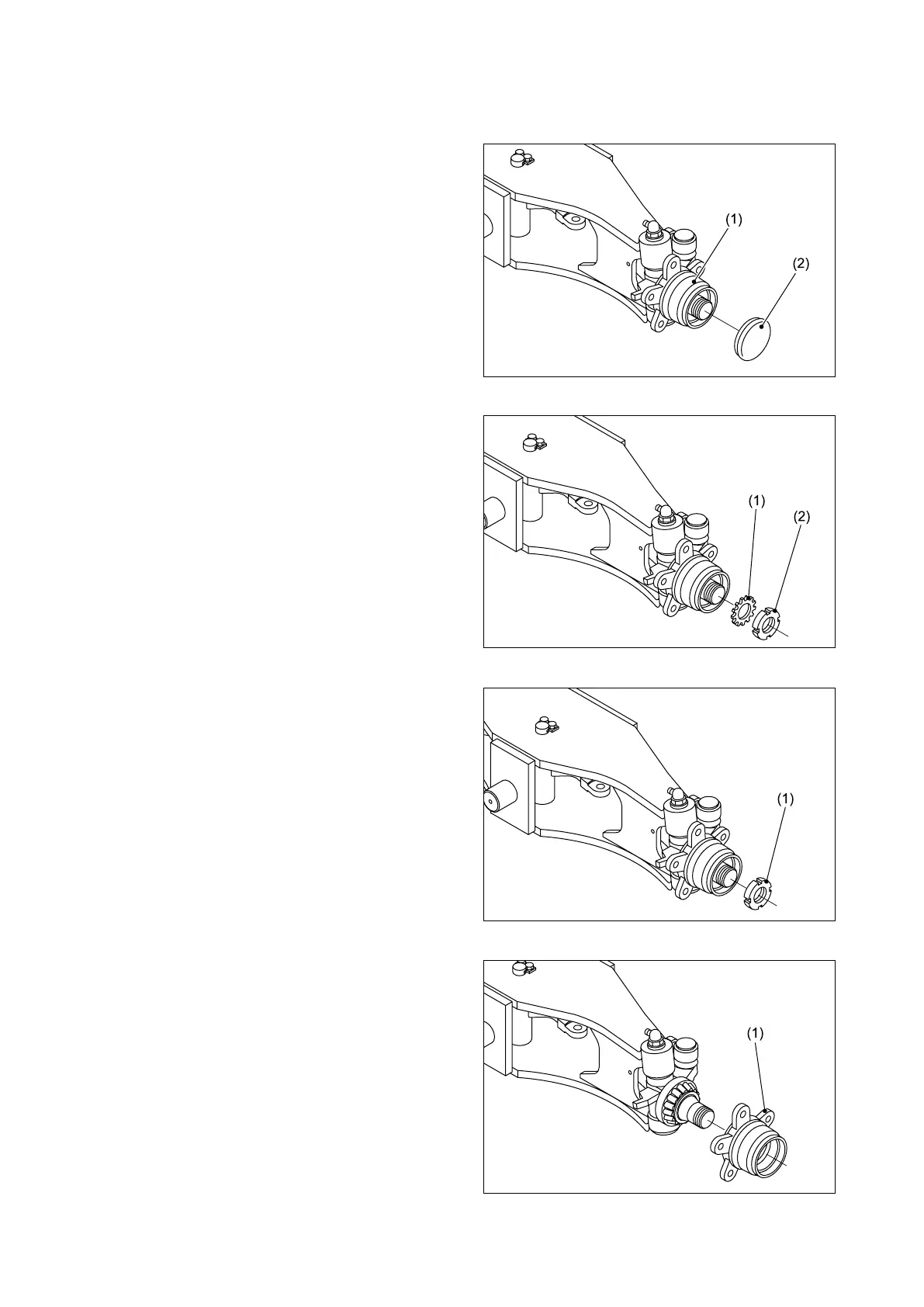

① Remove the wheel cap (2) from the hub (1).
② Release the lock on the lock washer (1) and
then remove the lock nut (2).
③ Remove the bearing nut (1).
④ Using a puller, remove the hub (1) together
with the tapered roller bearing.
