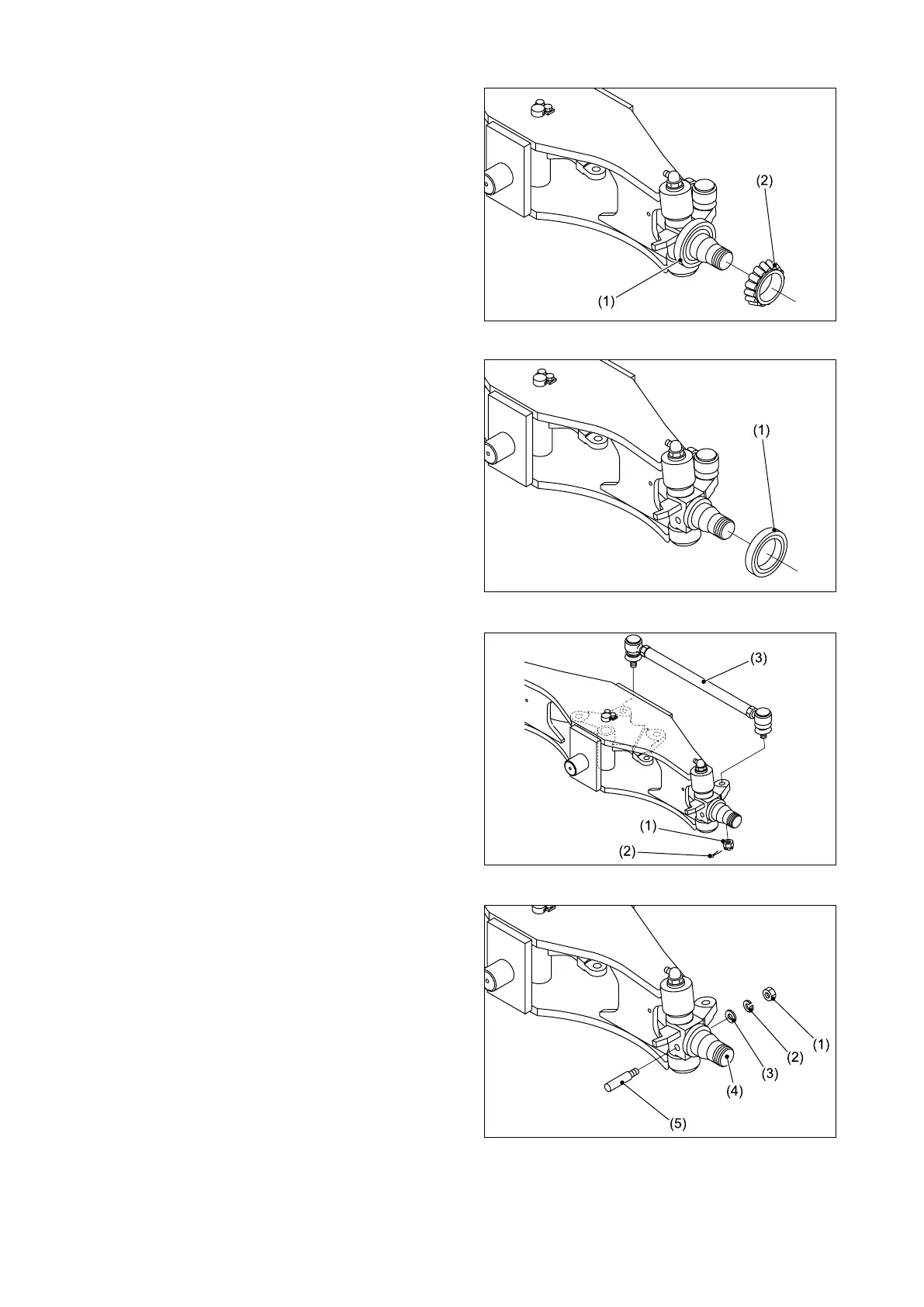

Fig. 3.291
Fig. 3.294
Fig. 3.293
Fig. 3.292
⑤ Using a puller, remove the tapered roller
bearing cone (2) from the spindle of the
knuckle (1).
⑥ Remove the oil seal (1).
⑦ Remove the nut (1) and split pin (2) and
remove each tie rod (3).
⑧ Remove the nut (1), spring washer (2), and
washer (3). Remove the lock pin (5) from the
knuckle (4).
