3-93
Fig. 3.295
Fig. 3.298
Fig. 3.297
Fig. 3.296

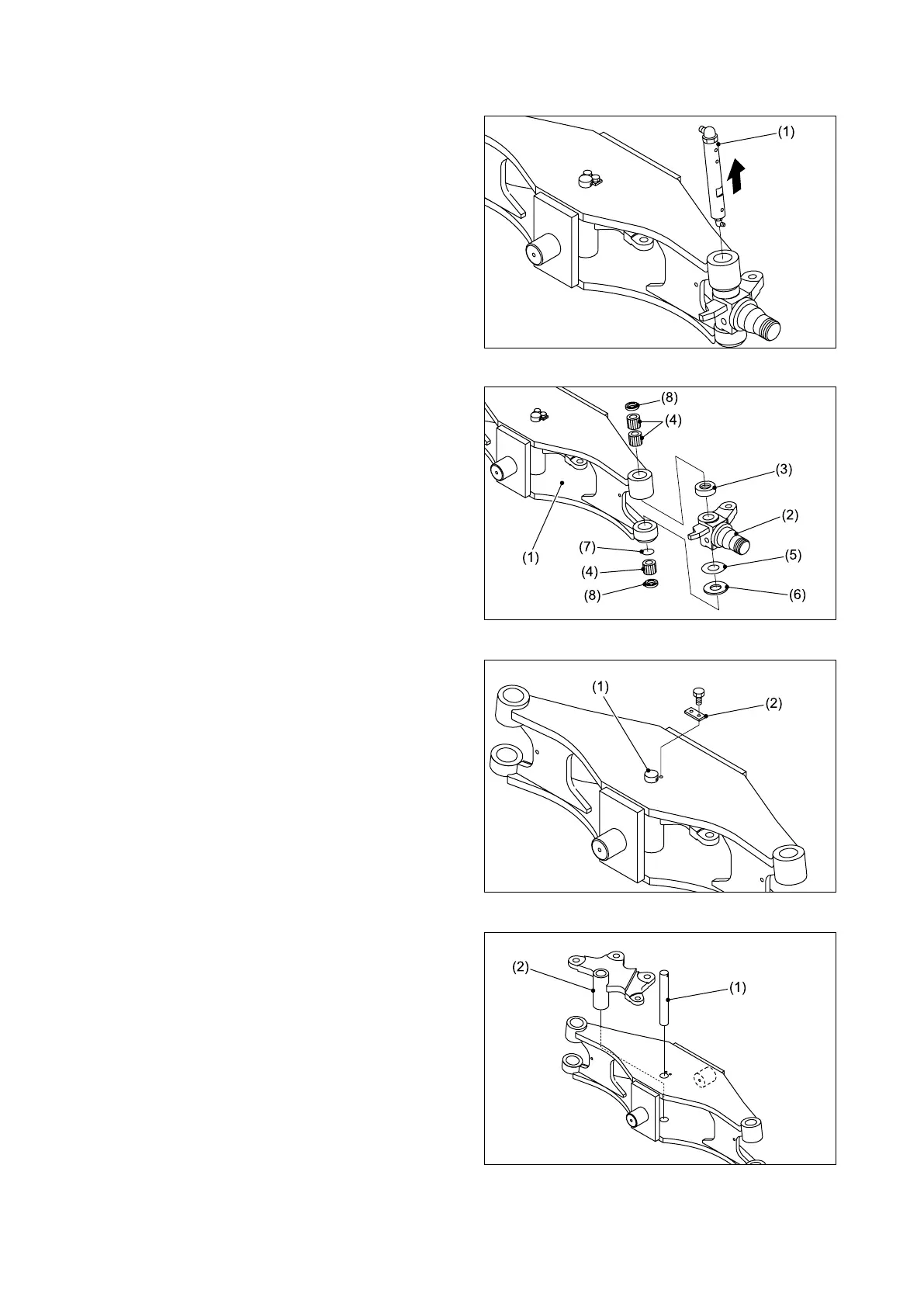

⑨ Remove the king pin as follows:
● Removethekingpin(1).
● Removetheknuckle (2),thrustbearing(3),
needle bearings (4), shims (5), spacer (6),
“O”-rings (7), and oil seals (8) from between
the bosses of the steering axle (1).
Note: Do not reuse the “O”-rings and oil seals
that have been removed. Use new ones for
reassembly.
⑩ Remove the lock plate (2) on the center arm
pin (1).
⑪ Remove the center arm pin (1) and remove
the center arm (2).
