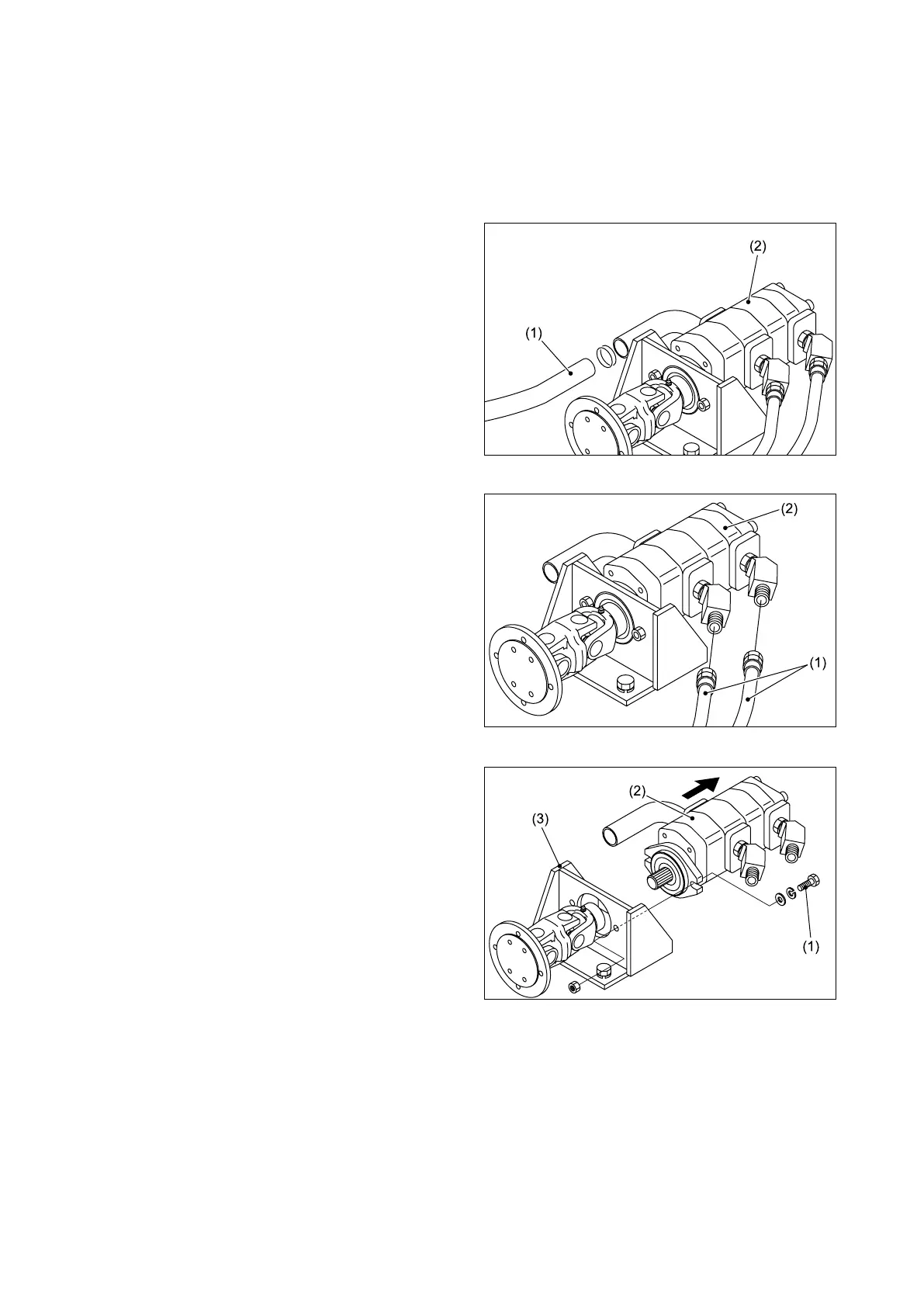

2.15 MAIN PUMP
■ REMOVAL
① Drain the oil from the oil tank.
② Rem ove the counterweight. (S ee “2.4
COUNTERWEIGHT.”)
③ Disconnect the hose (1) from the main pump
(2) that leads to the oil tank.
④ Disconnect the hoses (1) from the main pump
(2), one leading to the control valve and the
other to the priority valve.
⑤ Remove the bolts (1) securing the pump in
place, and then remove the main pump (2)
from the bracket (3).
