TCM FD35C9 - Page 211

3-97

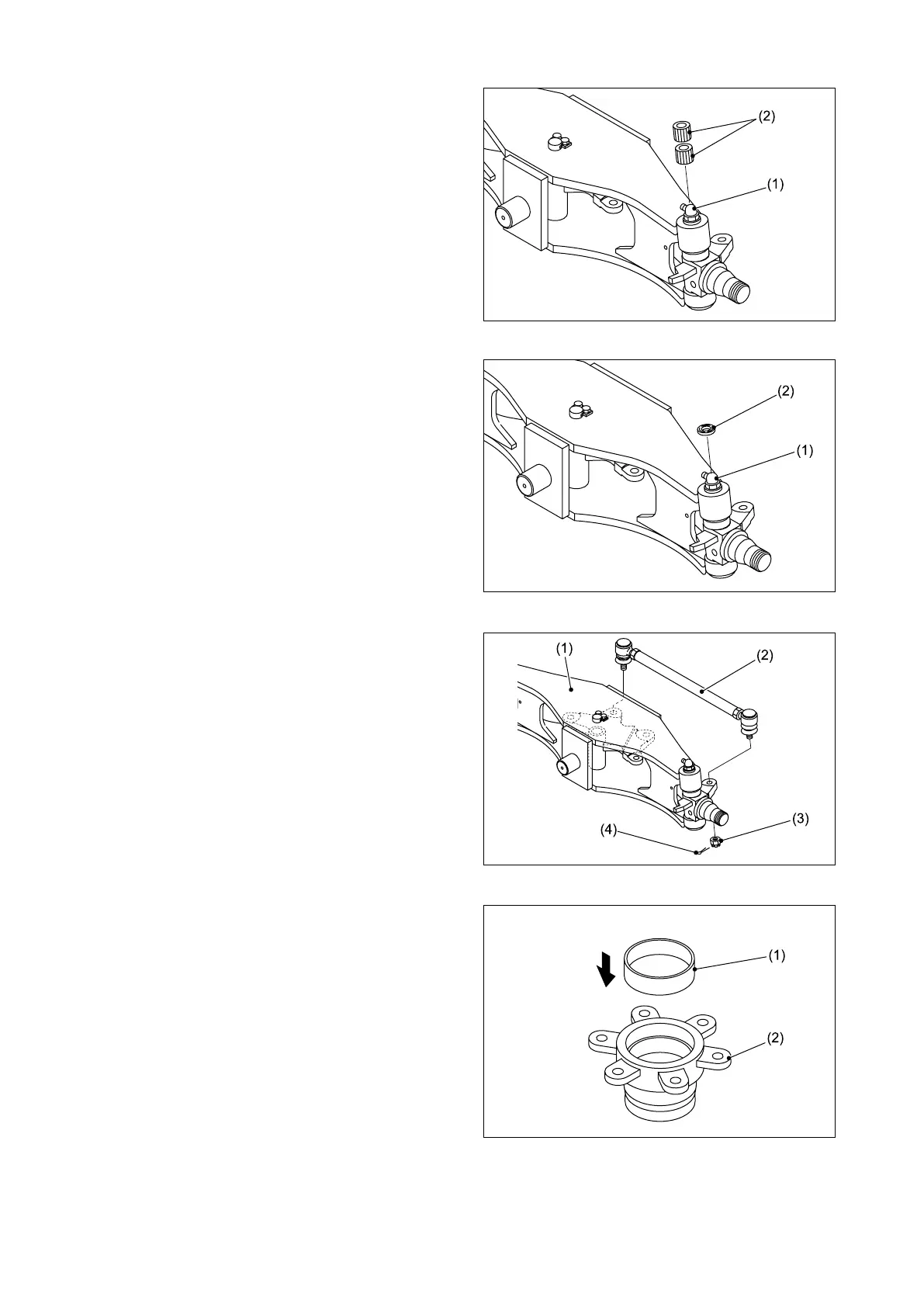

Fig. 3.308
Fig. 3.311
Fig. 3.310
Fig. 3.309
⑨ Install the needle bearings (2) to the top of the
king pin (1).
⑩ Install the dust seal (2) to the top (1) of the
king pin.
⑪ Install the tie rod (2) on the steering axle (1)
using the nut (3) and split pin (4).
⑫ Install the tapered roller bearing cup (1) into
the hub (2).
