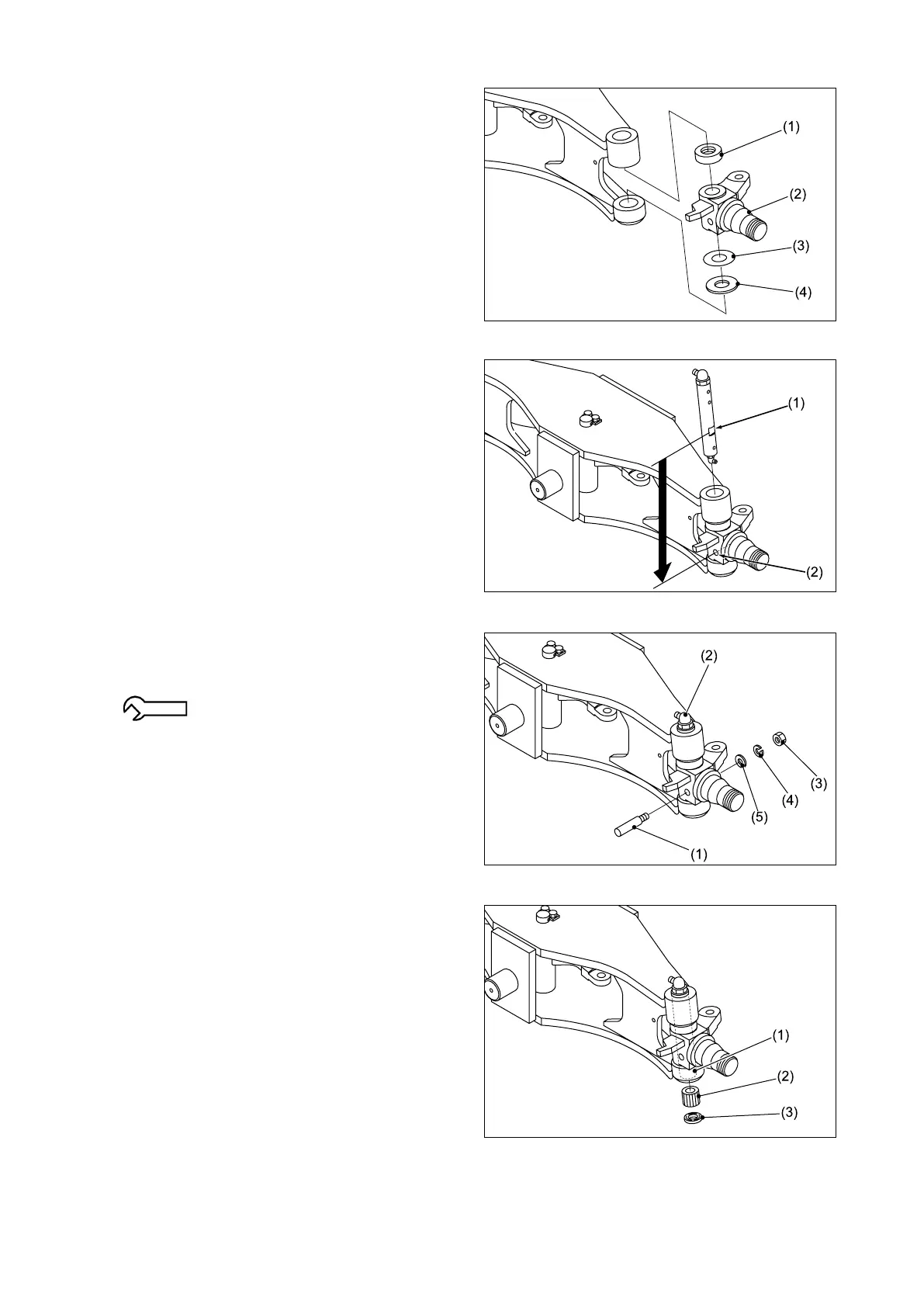

⑤ Place the thrust bearing (1), knuckle (2), the
shims (3) selected in step ③ , and spacer (4)
between the steering axle bosses.
⑥ Insert the king pin so that the notch (1) in the
king pin is aligned with the lock pin hole (2)
of the knuckle.
⑦ Lock the king pin (2) with the lock pin (1),
and secure with the nut (3), spring washer (4)
and washer (5).
17.1 - 25.4 N-m {1.7 – 2.6 kgf-m}
[12.6 - 18.7 lbf-ft]
⑧ Install the needle bearing (2) and oil seal (3)
to the bottom of the king pin (1).
Note: Use a new oil seal.
