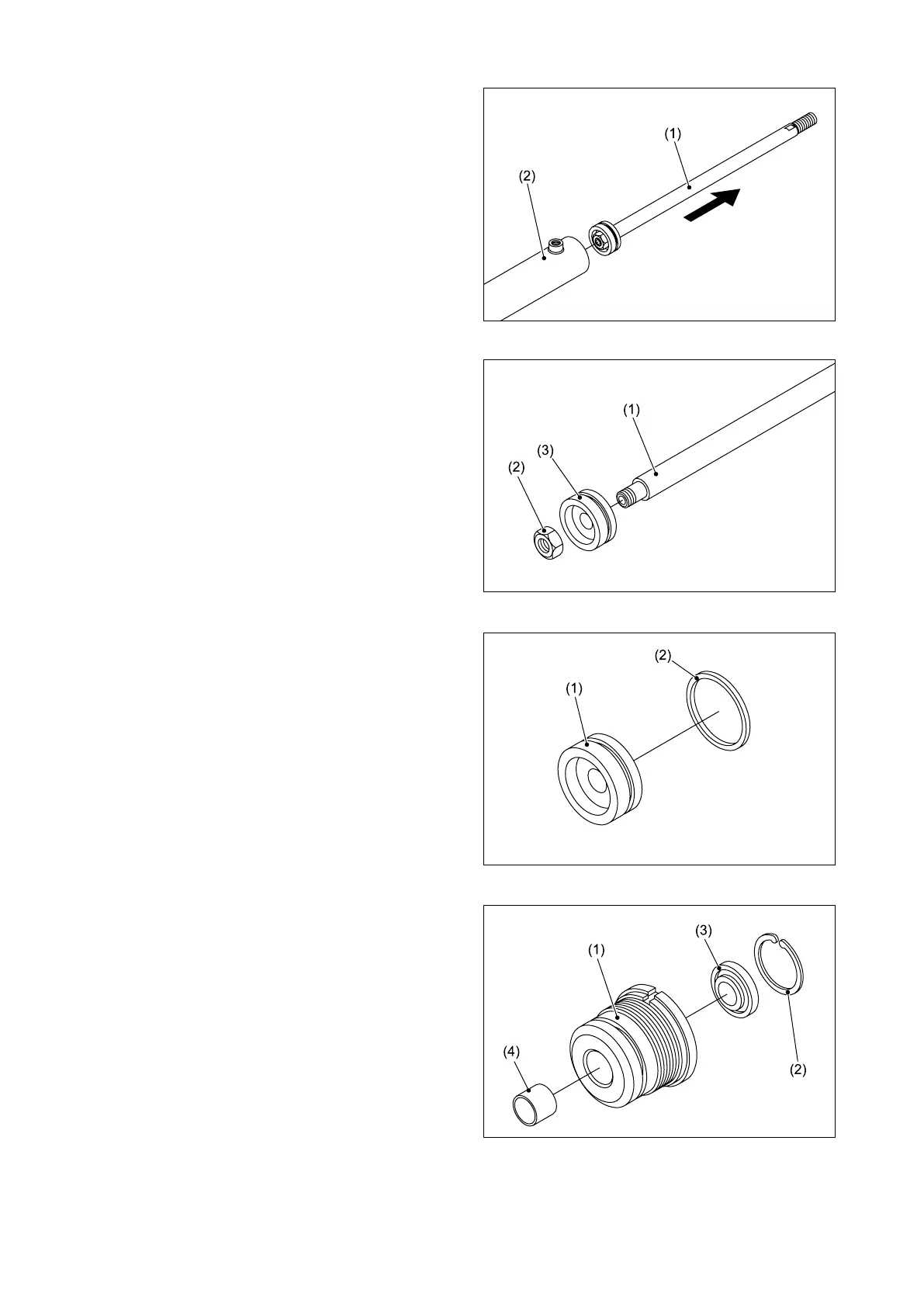

⑤ Remove the rod assembly (1) from the
cylinder (2).
⑥ Remove the nut (2) from the rod (1) and
remove the piston (3).
⑦ Remove the slipper seal (2) from the piston
(1).
⑧ Remove the snap ring (2) from the cylinder
cap (1) and remove the oil seal (3) and
bushing (4).
