2-53
Fig. 2.137
Fig. 2.139
Fig. 2.138

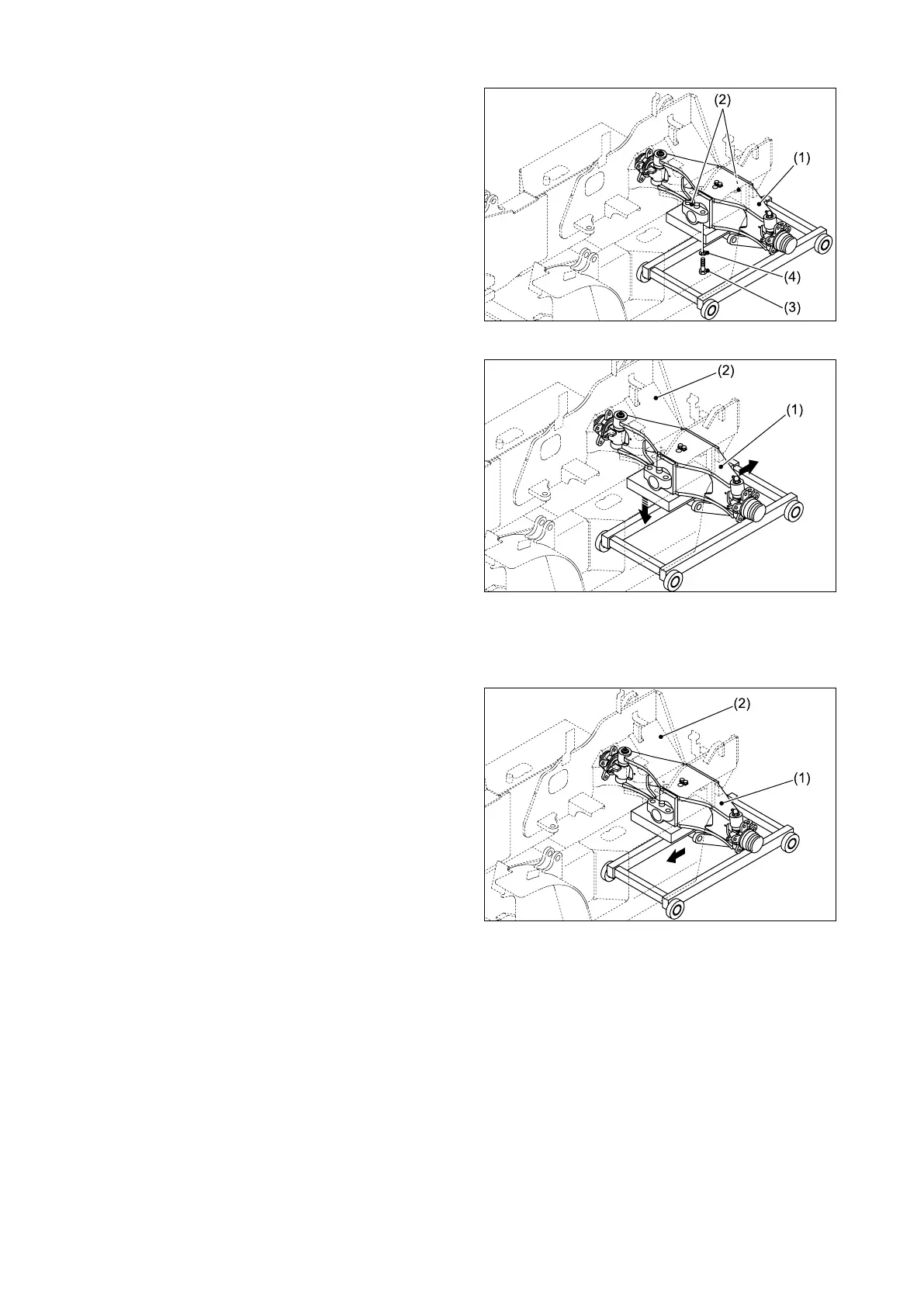

⑥ Support the underside of the steering axle (1)
with a garage jack. Then remove the bolts (3)
and spring washers (4) that secure the axle
supports (2) in place.
⑦ Gradually lower the garage jack and remove
the steering axle (1) from the frame (2).
■ REINSTALLATION
① Place the steering axle (1) on the garage jack.
Then place the steering axle near its mounting
position on the frame (2).
② Jack up the steering axle so that the bolt holes
in the steering axle are aligned with the holes
in the frame.
