2-54
Fig. 2.140
Fig. 2.142
Fig. 2.141

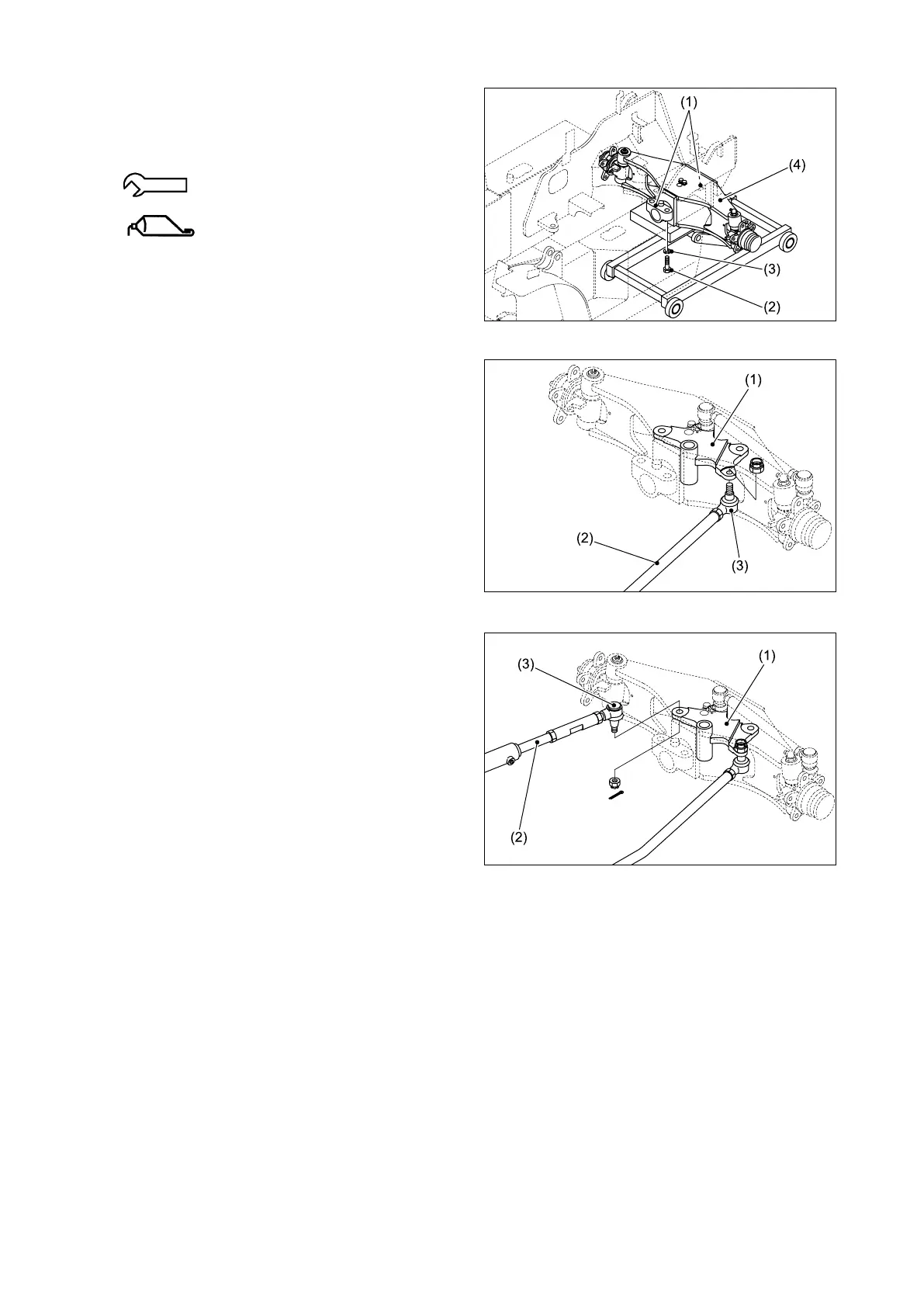

③ Secure the steering axle (4) in place by
installing the front and back axle supports (1)
on the frame using the bolts (2) and spring
washers (3).
175 N-m {17.8 kgf-m}
[129.1 lbf-ft]
Apply LOCTITE #578.
④ Install the ball joint (3) of the drag link (2) on
the center arm (1).
⑤ Install the ball joint (3) of the steering
cylinder rod (2) on the center arm (1).
⑥ I n s tall the counterwei g h t . ( S e e “ 2 . 4
COUNTERWEIGHT.”)
⑦ Install the wheels.
