3-3
Fig. 3.8
Fig. 3.10
Fig. 3.9

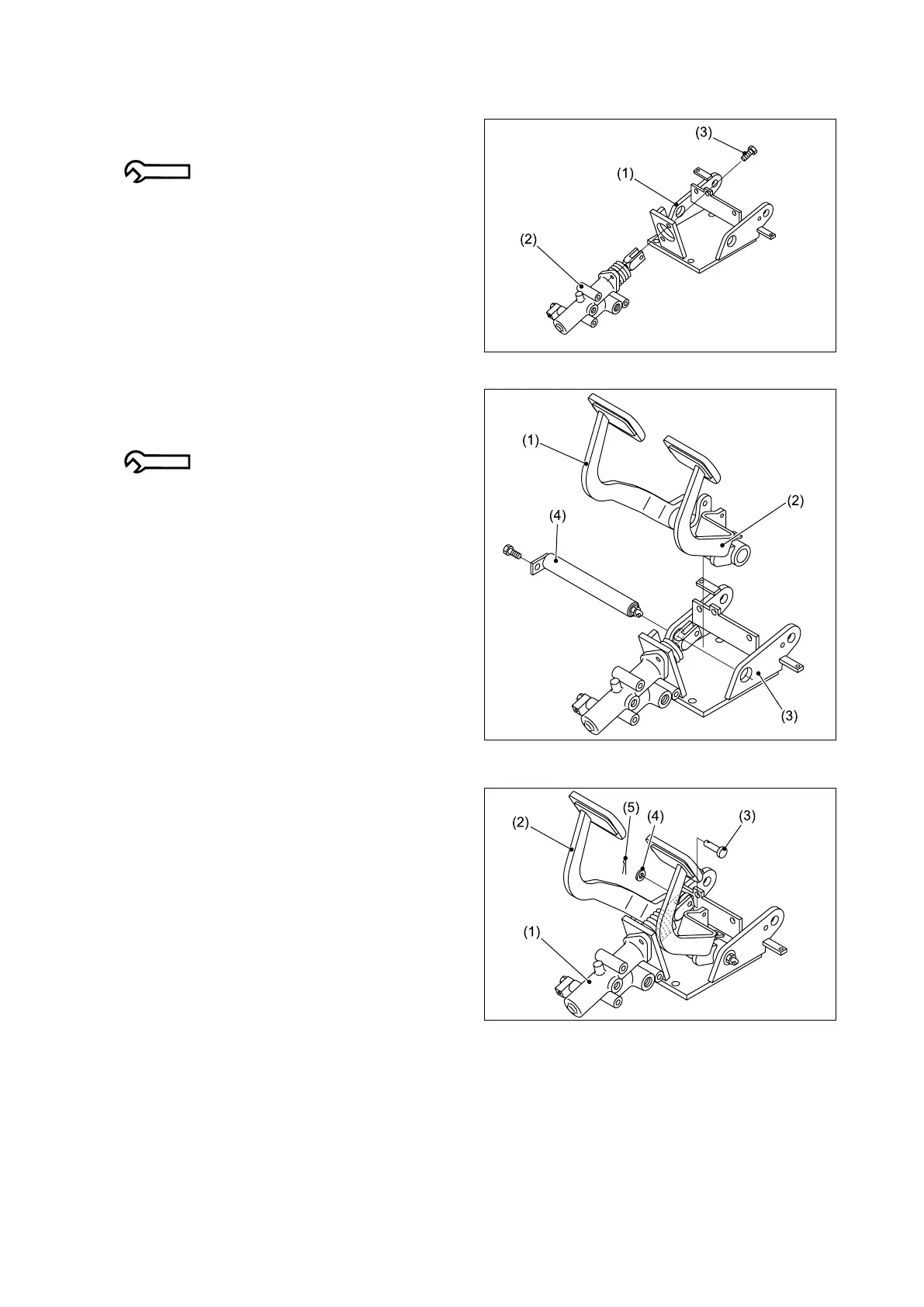

■ REASSEMBLY
① Install the brake booster (2) on the pedal
bracket (1) using the bolts (3).
21.2 N-m {2.2 kgf-m} [15.6 lbf-ft]
② Place the brake pedal (1) and inching pedal (2)
in the pedal bracket (3) and then secure them
using the shaft (4).
9.8 N-m {1.0 kgf-m} [7.2 lbf-ft]
③ Install the brake pedal (2) on the brake booster
(1) using the pin (3), washer (4), and split pin
(5).
