3-6
Fig. 3.17
Fig. 3.19
Fig. 3.18

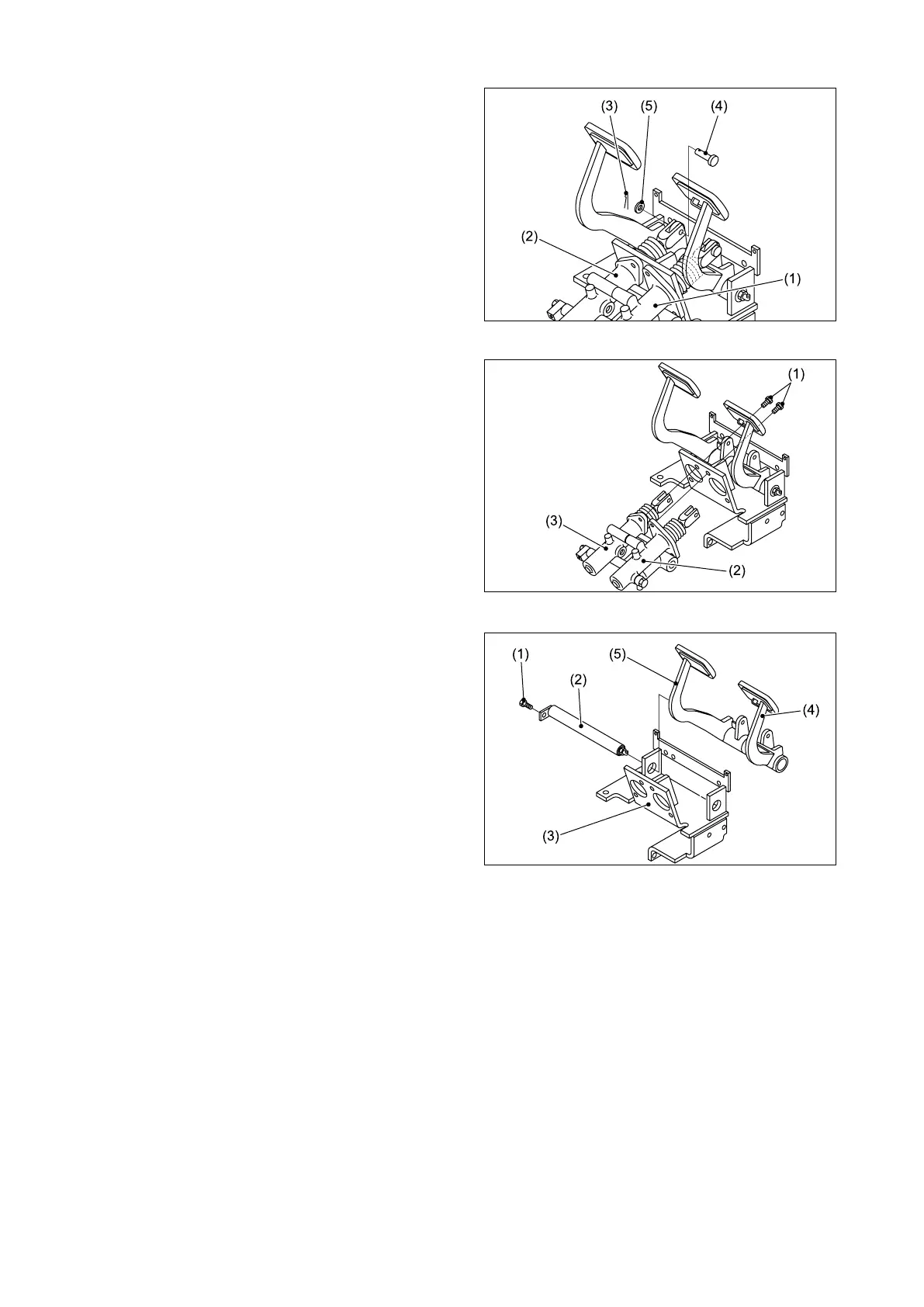

④ Remove the split pins (3) from the clutch
booster (1) and brake booster (2), and then
remove the pins (4) and washers (5).
⑤ Remove the bolts (1) and then remove the
clutch booster (2) and brake booster (3).
⑥ Remove the bolt (1) and remove the shaft (2).
Then remove the clutch pedal (4) and brake
pedal (5) from the pedal bracket (3).
