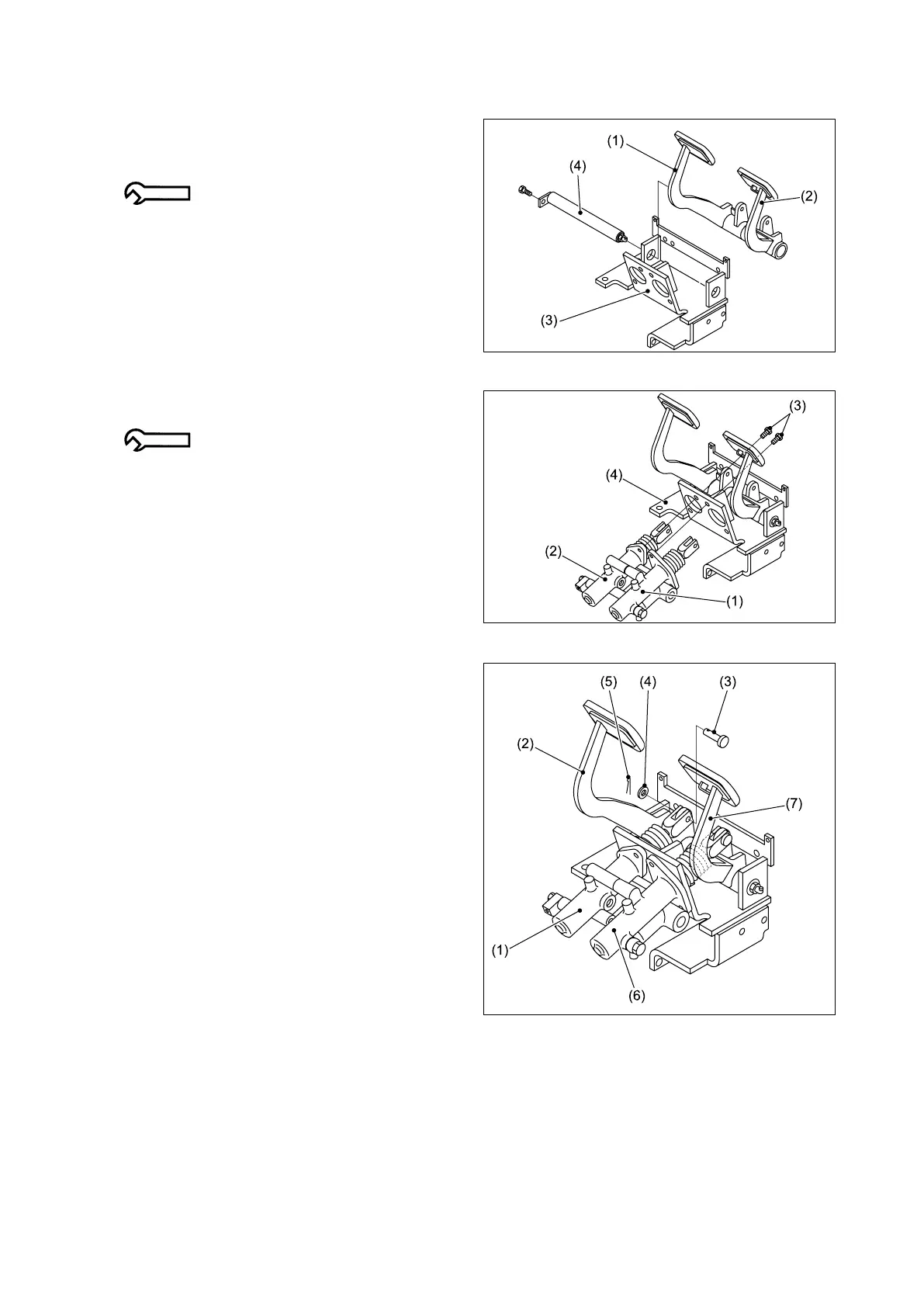

■ REASSEMBLY
① Place the brake pedal (1) and clutch pedal (2)
in the pedal bracket (3). Then secure them to
the bracket using the shaft (4).
9.8 N-m {1.0 kgf-m} [7.2 lbf-ft]
② Install the clutch booster (1) and brake booster
(2) on the pedal bracket (4) using the bolts (3).
21.2 N-m {2.2 kgf-m} [15.6 lbf-ft]
③ Secure the brake booster (1) to the brake pedal
(2) using the pin (3), washer (4), and split pin
(5).
Secure the clutch booster (6) to the clutch
pedal (7) in the same manner.
